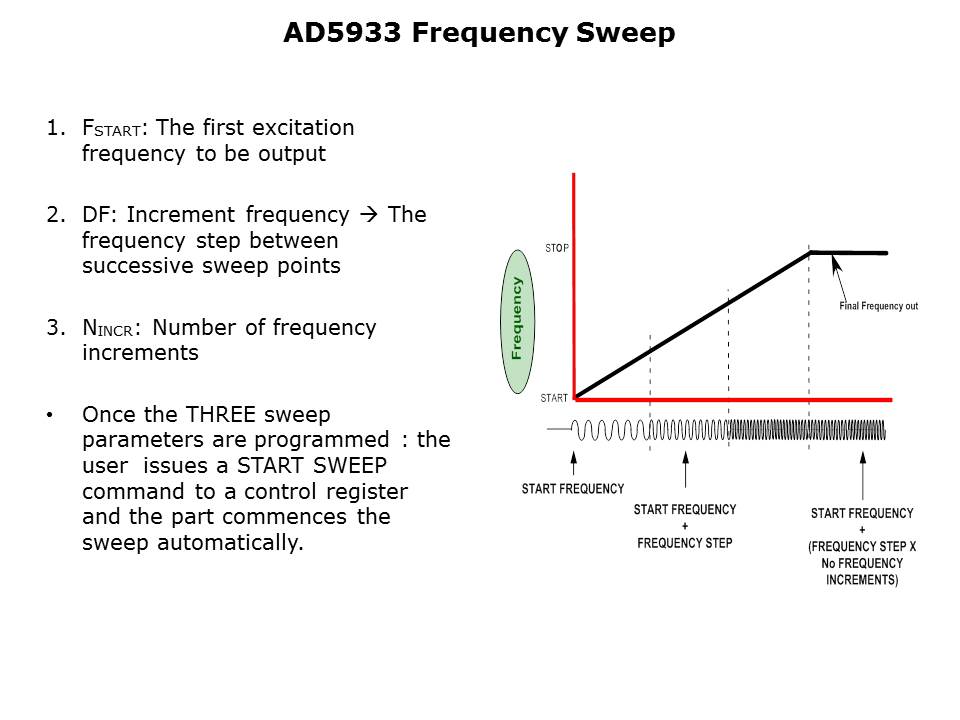

The Frequency Increment is a 24-bit word that is programmed to the on-board RAM at addresses 85 h, 86 h, and 87 h. The required code loaded to the Frequency Increment register is based on the master clock frequency and the required increment frequency output from the DDS as follows: Frequency Increment code = ( Required frequency increment / (MCLK / 4)) x 227.
