HSHM-Slide18

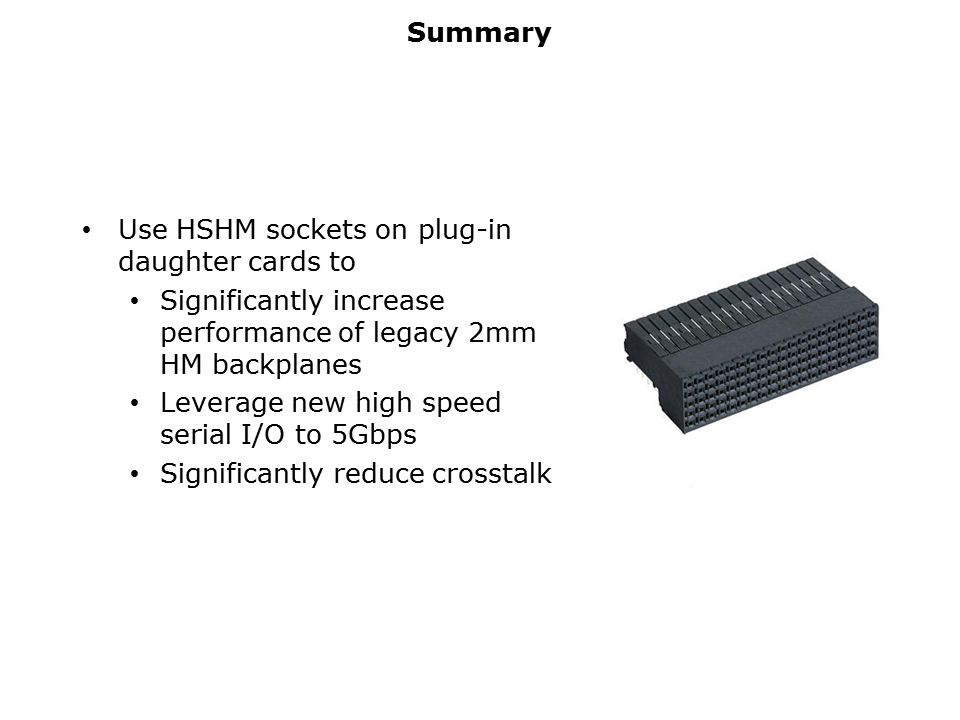

In summary, 3M™ MetPak™ High Speed Hard Metric (or ‘HSHM’) Press-Fit Socket Connectors help designers of single board computers featuring standard HM connectors achieve a cost-effective upgrade to higher speeds and support newer high speed serial I/O protocols up to 5Gbps. Also, crosstalk can be significantly reduced.

PTM Published on: 2011-10-13
