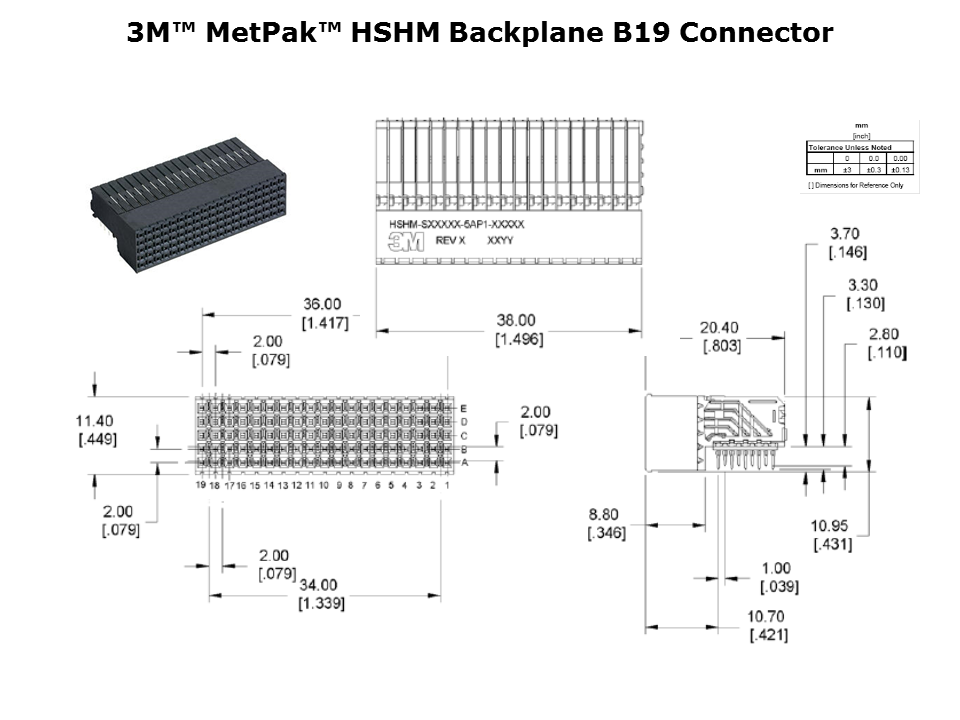

The 3M™ MetPak™ HSHM B19 fully shielded connector mates with standard 2mm 5-row cPCI /hard metric headers located on the backplane of a rack system.  These are designated the ‘P0’ connectors on VME64x with VITA31 systems; and ‘P3’ connectors on cPCI boards designed to comply with PICMG 3.16. Full pin-to-pin compatibility can be maintained with existing VME and cPCI backplanes.
