HSHM-Slide16

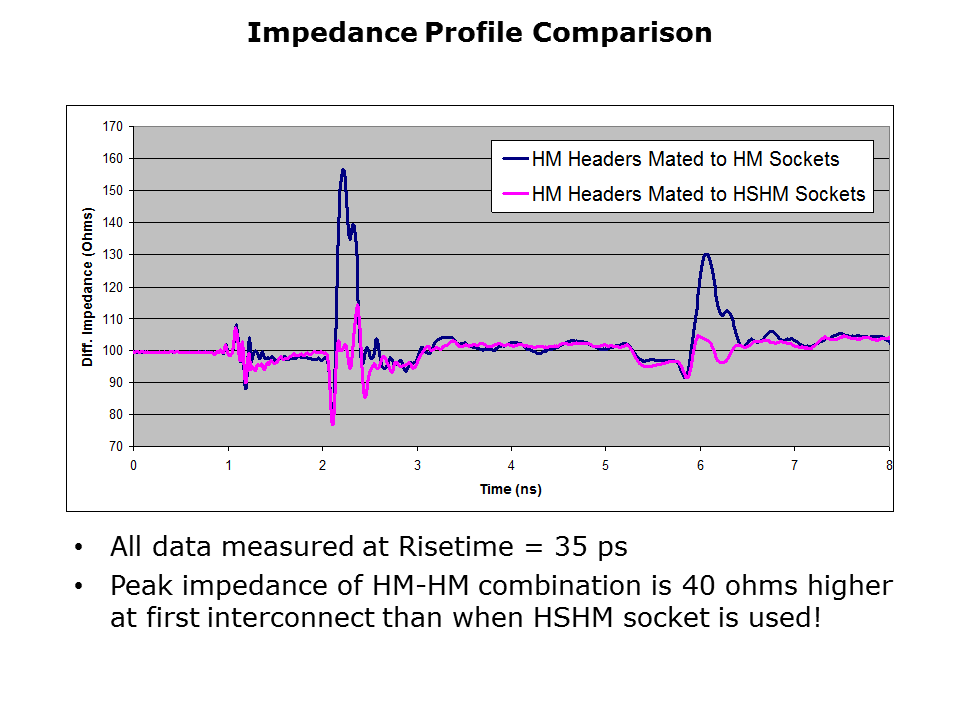

The graph - shown here - plots the results of two tests and compares HM Header to HM Socket and HM Header to HSHM Socket connectors. In the HM to HSHM impedance TDR plot, crosstalk to the neighboring pair is cut nearly in half even at rise times as fast as 100 picoseconds and crosstalk to pairs on the opposite side of the ground row is negligible.

PTM Published on: 2011-10-13
