T9602-Slide4

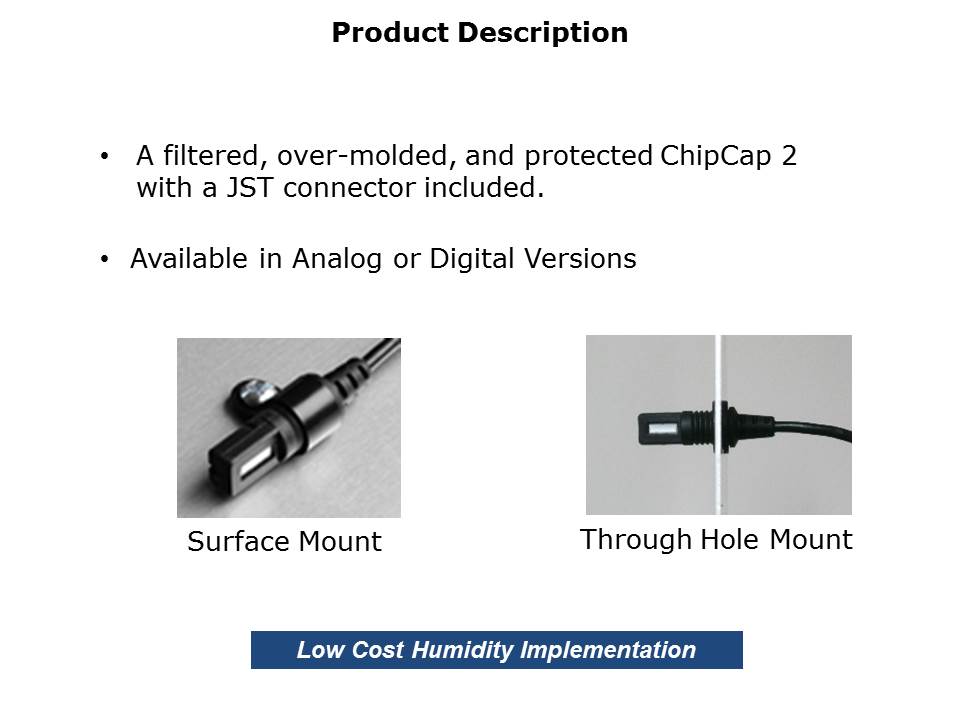

The T9602 is essentially a filtered, over-molded ChipCap 2 sensor. It also includes a small JST connector which has its specifications highlighted on the product datasheet. Additionally, it is available in an analog or digital version. This slide shows a couple different mounting options. The sensor has the same diameter as the cable so a 9/16 inch or 9.1mm cable clip for surface mounting or grommet for through panel mounting can be used.
