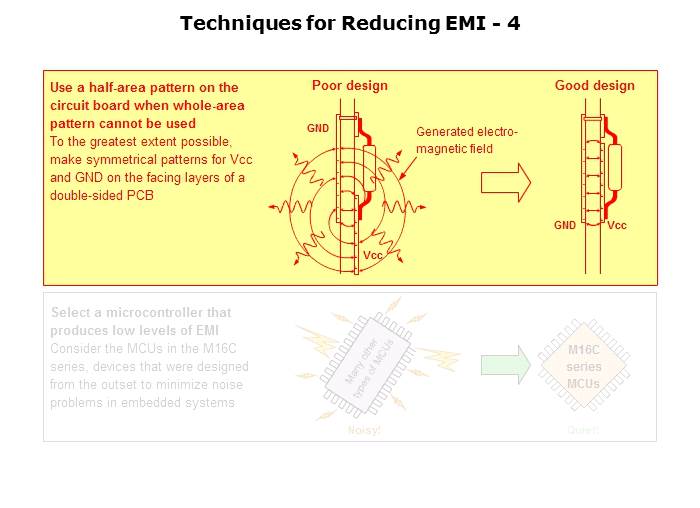

By contrast, in the illustration of a poor wiring layout on the left, the Vcc and GND patters on the opposite sides of the PCB are not symmetrical. With this layout, the circuit might easily pick up normal-mode noise. It might also have an antenna-like effect that radiates noise due to the electromagnetic field the wiring produces.
