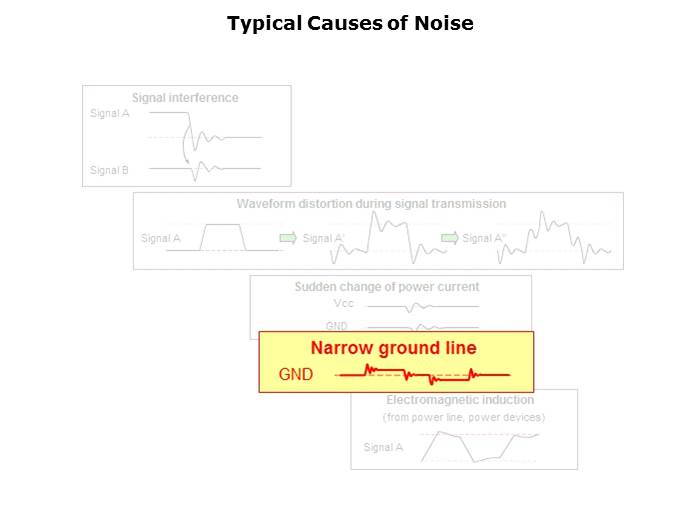

A ground line that is too narrow can cause noise, too. Even though there may be bypass capacitors in the circuit to minimize high-frequency noise signals, a narrow ground line will have enough impedance to cause differences between the ground potentials of carious devices. Any signals referenced to ground will be affected by these variations.
PTM Published on: 2011-11-02
