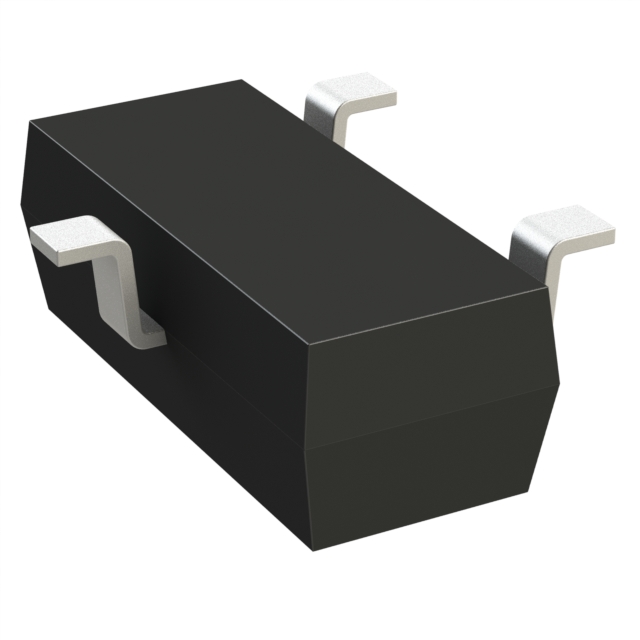

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
BAV99 | |
|---|---|
DigiKey Part Number | 1655-BAV99TR-ND - Tape & Reel (TR) 1655-BAV99CT-ND - Cut Tape (CT) 1655-BAV99DKR-ND - Digi-Reel® |
Manufacturer | |
Manufacturer Product Number | BAV99 |
Description | DIODE ARRAY GP 75V 150MA SOT23-3 |
Manufacturer Standard Lead Time | 8 Weeks |
Customer Reference | |
Detailed Description | Diode Array 1 Pair Series Connection 75 V 150mA Surface Mount TO-236-3, SC-59, SOT-23-3 |
Datasheet | Datasheet |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | SMC Diode Solutions | |
Series | - | |
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Part Status | Active | |
Diode Configuration | 1 Pair Series Connection | |
Technology | Standard | |
Voltage - DC Reverse (Vr) (Max) | 75 V | |
Current - Average Rectified (Io) (per Diode) | 150mA | |
Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 6 ns | |
Current - Reverse Leakage @ Vr | 2.5 µA @ 75 V | |
Operating Temperature - Junction | -65°C ~ 150°C | |
Mounting Type | Surface Mount | |
Package / Case | TO-236-3, SC-59, SOT-23-3 | |
Supplier Device Package | SOT-23-3 | |
Base Product Number |
In-Stock: 242,316
Check for Additional Incoming Stock
Quantity
All prices are in AUD
Cut Tape (CT) & Digi-Reel®
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $0.31000 | $0.31 |
| 10 | $0.19000 | $1.90 |
| 100 | $0.11730 | $11.73 |
| 500 | $0.08552 | $42.76 |
| 1,000 | $0.07522 | $75.22 |
Tape & Reel (TR)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 3,000 | $0.06206 | $186.18 |
| 6,000 | $0.05540 | $332.40 |
| 9,000 | $0.05201 | $468.09 |
| 15,000 | $0.04819 | $722.85 |
| 21,000 | $0.04593 | $964.53 |
| 30,000 | $0.04372 | $1,311.60 |
| 75,000 | $0.03889 | $2,916.75 |
| 150,000 | $0.03590 | $5,385.00 |
| 300,000 | $0.03339 | $10,017.00 |
| Unit Price without GST: | $0.31000 |
|---|---|
| Unit Price with GST: | $0.34100 |
