Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0395305012 | |
|---|---|
DigiKey Part Number | WM25974-ND |
Manufacturer | |
Manufacturer Product Number | 0395305012 |

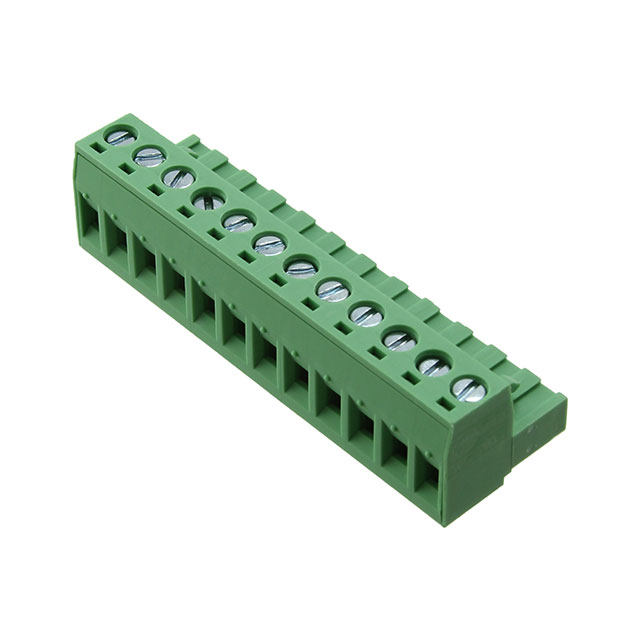

Description | TERM BLOCK PLUG 12POS 5.08MM |
Manufacturer Standard Lead Time | 9 Weeks |
Customer Reference | |
Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
Datasheet | Datasheet |
Product Attributes
Filter Similar Products
Show Empty Attributes
Category | Voltage - UL 300 V |
Manufacturer Molex | Wire Gauge or Range - AWG 12-26 AWG |
Series | Color Green |
Packaging Bulk | Operating Temperature -40°C ~ 115°C |
Part Status Active | Contact Mating Finish Tin |
Type Plug, Female Sockets | Features Retention Latches (Non-Wire Side) |
Number of Positions 12 | Screw Size M3 |
Positions Per Level 12 | Torque - Screw 0.56 Nm (5.0 Lb-In) |
Number of Levels 1 | Wire Strip Length 5mm |
Pitch 0.200" (5.08mm) | Contact Material Copper Alloy |
Plug Wire Entry 180° | Housing Material Polyamide (PA), Nylon |
Termination Style Screw - Rising Cage Clamp | Insulation Height 0.591" (15.00mm) |
Mounting Type Free Hanging (In-Line) | Base Product Number |
Current - UL 15 A |
Report Product Information Error
Documents & Media
Environmental & Export Classifications
Product Questions and Answers
Additional Resources
In-Stock: 500
Check for Additional Incoming Stock
Quantity
All prices are in AUD
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $15.59000 | $15.59 |
| 10 | $11.06700 | $110.67 |
| 25 | $9.78200 | $244.55 |
| 50 | $9.00300 | $450.15 |
| 240 | $7.75267 | $1,860.64 |
| 480 | $7.37856 | $3,541.71 |
| 720 | $7.19883 | $5,183.16 |
| 1,200 | $7.00690 | $8,408.28 |
| Unit Price without GST: | $15.59000 |
|---|---|
| Unit Price with GST: | $17.14900 |
