Product Highlights > Safety Switches, Relays & Sensors

Omron Safeguarding Components

Omron offers a line of safety component switches, relays and sensors to fit your required safety countermeasures in equipment and facilities. They are used for shut-out detection of mechanical guards, checking intrusion into hazardous areas, and building safety circuits.

Emergency Stop Switches

These switches are used to stop equipment and facilities in emergencies. They can be used in safety circuits in combination with Safety Relay Units.

A22NE-PD - Emergency Stop Switch (22-dia. or 25-dia.)

Push-in Plus Terminal Block Models

Non-contact E-stop design reduces mechanical wear and maintenance
Direct opening safety architecture for reliable circuit interruption
Compact housing supports 22 mm panel cutouts
High-visibility actuator for fast emergencyrecognition
Designed for demanding industrial safety

A165E - Emergency Stop Switch (16-dia.)

Separate Construction with Smallest Class of Depth in the World

Direct opening mechanism to open contacts in emergencies, such as when they are welded.
Conforms to EN418.
Includes a safety lock to prevent misuse.
Features separate construction that allows the Switch to be separated for easier wiring and one-piece construction that allows easier handling.
Models available with 3 contacts built into a single block (A165E-U)

A22E - Emergency Stop Switch (22-dia./25-dia.)

Install in 22-dia. or 25-dia. Panel Cutout

Direct opening mechanism to open the circuit when the contact welds
Safety lock mechanism prevents operating errors.
Easy mounting and removal of Switch Blocks using a lever.
Mount three Switch Units in series to improve wiring efficiency (with non-lighted Switch Units, three Units can be mounted for multiple contacts).
Finger protection mechanism on Switch Unit provided as a standard feature.
Install using either round or forked crimp terminals.
Oil-resistant to IP65 (non-lighted models)/IP65 (lighted models)
A lock plate is provided as a standard feature to ensure that the control box and switch are not easily separated.

ER6022 - Rope Pull Emergency Stop Switch

Ideal for wash-down cleaning and extreme cold applications

Emergency rope pull switch for long conveyor safeguarding
Maintains reliable operation across extended rope spans
Positive-opening contacts for dependable safety shutdown
Rugged housing for harsh industrial environments
Ideal for material handling and packaging lines

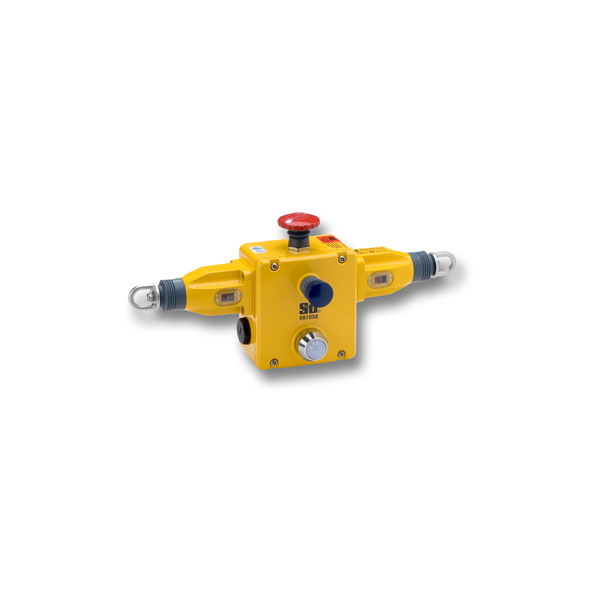

ER1032 - Rope Pull Emergency Stop Switch

Dual-direction rope activation for full-length protection

Status indication simplifies system diagnostics
Reset mechanism designed for quick restoration
Durable construction for demanding factory floors
Suitable for conveyors and distributed machinery

Safety Door Switches

Safety Door Switches detect when mechanical guards or covers are closed. They are available in models using either mechanical or non-contact detection, and operation with special keys or actuators is possible.

D4SL-N - Guard-lock safety door switch

The D4SL-N guard-lock provides a wide range of models for the safe monitoring of entries and positions of guards.

Guard locking mechanism enhances machine access control
Positive opening contacts for safety-rated circuits
Multiple actuator styles for installation flexibility
High mechanical durability for long service life
Designed for hazardous motion applications and entrapment prevention

D40A-2 - Non-Contact Interlock Door Switch

Next-generation, non-contact safety interlock switch for most common safety applications.

Magnetic detection provides stable, precise door monitoring
Achieves PLe/Category 4 when used with approved controllers
Series connection up to 30 switches reduces wiring complexity
IP66/IP67 rated and Ecolab certified for washdown environments
Operates from −25°C to +70°C for harsh temperature conditions

CM-S - Safety Interlock Door Switches

Versatile door switch monitoring with flexible housing options and tamper resistance

Compact safety monitoring for emergency stops and interlocks
Simplifies wiring in small control panels
LED diagnostics for quick troubleshooting
DIN-rail mounting for fast installation
Suitable for Category 3/4 safety architectures

D4NS - Safety-door Switch

Multi-contact, Labor-saving, Environment-friendly, Next-generation Safety-door Switch

Lineup includes three contact models with 2NC/1NO and 3NC contact forms and MBB models in addition to the previous contact forms 1NC/1NO, and 2NC.
M12-connector models are available, saving on labor and simplifying replacement.
Standardized gold-clad contacts provide high contact reliability.
Applicable to both standard loads and microloads.
Variety of metallic heads available.

Safety Limit Switches

Safety Limit Switches are limit switches equipped with direct opening mechanisms.

D4N - Safety Limit Switch

Popular Safety Limit Switches Providing a Full Lineup Conforming to International Standards

Lineup includes models with 1NC/1NO, 2NC, 2NC/1NO and 3NC contact forms. (Slow-action models with MBB contacts are available.)
M12-connector models are also available, saving on labor and simplifying replacement.
Standardized gold-clad contacts provide high contact reliability. Can be used with both standard loads and microloads.
Conforms to EN115, EN81-1, and EN81-2 (slow-action models only).
Certified standards: UL, EN (TÜV), and CCC

D4B-_N - Safety Limit Switch

Robust safety limit switch with metal housing Slow-action and snap-action contact with certified direct opening operation certification.

Direct opening mechanism (NC contacts only) added to enable opening contacts when faults occur, such as fused contacts.
Safety of lever settings ensured using a mechanism that engages a gear between the operating position indicator plate and the lever.
Equipped with a mechanism that indicates the applicable operating zone, as well as push-button switching to control left and right motion.
Head seal structure strengthened to improve seal properties (TÜV: IEC IP67, UL: NEMA 3, 4, 4X, 6P, and 13).
Wide standard operating temperature range:-40 to 80°C (standard type).
Certified standards: UL, CSA, EN (TÜV), and CCC.

Safety PLC Controllers

Safety Controllers form the core of the system when building safety circuits for equipment and facilities. Appropriate circuits can be configured to enable detecting input and output faults and to enable failsafe systems.

G9SP - Safety Controller

Easy programming for complex safety control

Configurable unit makes it ideal for building multiple stand-alone systems with the same specifications, or reconfiguring an existing set-up
Handles function blocks for non-contact switches, single-beam sensors and safety mat inputs
Faster and easier integration compared to hardwired systems
Single simple GUI for configuration, simulation, testing and validation
Greatly reduced set-up time
EN ISO 13849-1 ready (PLe/Safety category 4)

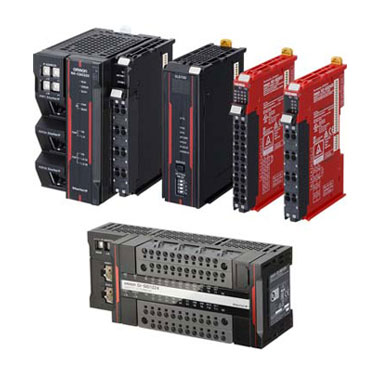

NX - Safety Control Units

Integration of Safety into Machine Automation Enables Simple, Flexible System Configuration.

EN ISO13849-1 (PLe/Safety Category4), IEC 61508 (SIL3) certified.
One connection using Safety over EtherCAT (FSoE) protocol enables flexible configuration by mixing the Safety Units with standard NX I/O.
Now supports stand-alone operation with EtherNet/IP monitoring up to 256 I/O.

Safety Relays

Safety Relays are used to build safety circuits for equipment and facilities. Safety Relays have a forced guided mechanism that enables detecting contact welding.

G7SA - Relays with Forcibly Guided Contacts

Compact, Slim Relays Conforming to EN Standards

Forcibly guided contacts compliant with safety standards
High dielectric strength for reliable isolation
Compact footprint saves panel space
Multiple contact configurations available
Designed for emergency stop and safety monitoring circuits

G9SE - Safety Relay Units

Compact and easy-to-install units with safety outputs Helps increase your productivity, from installation to maintenance

Front-mounted screw-less terminals provide quick and easy access for installation
Supports E-stops, light curtains, safety laser scanners, and door switches
Simplifies configuration of safety logic functions
Compact DIN-rail design conserves panel space
Suitable for Category 4 / PLe safety systems

G9SX - Flexible Safety Unit

Logical AND Function Adds Flexibility to I/O Expansion

Facilitates partial or complete control system setup.
Solid-state outputs (excluding Expansion Units).
Detailed LED indications enable easy diagnosis.
TÜV SÜD certification for compliance with IEC/EN61508 (SIL3), EN ISO13849-1 (PLe/Safety Category 4).
Approved by UL and CSA.
New unit joins the Series with the following two additional features:
- OFF-delay time of up to 150 seconds can be set.
- Two logical AND connection inputs

Safety Light Curtains

F3SG-SR - Safety light curtain was developed to help overcome the challenges of globalization and flexible production

The F3SG-SR series safety light curtain is Omron's latest and most advanced light curtain designed to help customers reduce their light curtain installation and configuration time, giving them the ultimate flexibility in their machine safety designs and maximizing their machine uptime with enhanced diagnostic features.

Area beam indicator for at-a-glance beam status verification
Status indicators for monitoring information about equipment stoppages
Protective heights ranging from 160 mm to 2,480 mm
IP67G oil-proof rating and minimum operating temperature of -30°C
