MOTIX™ TLE9189x Next-Generation 3-Phase Gate Driver

Infineon Technologies MOTIX TLE9189x reliable, scalable, and cost-optimized gate driver ICs for 12 V brushless DC motors offer advanced safety features

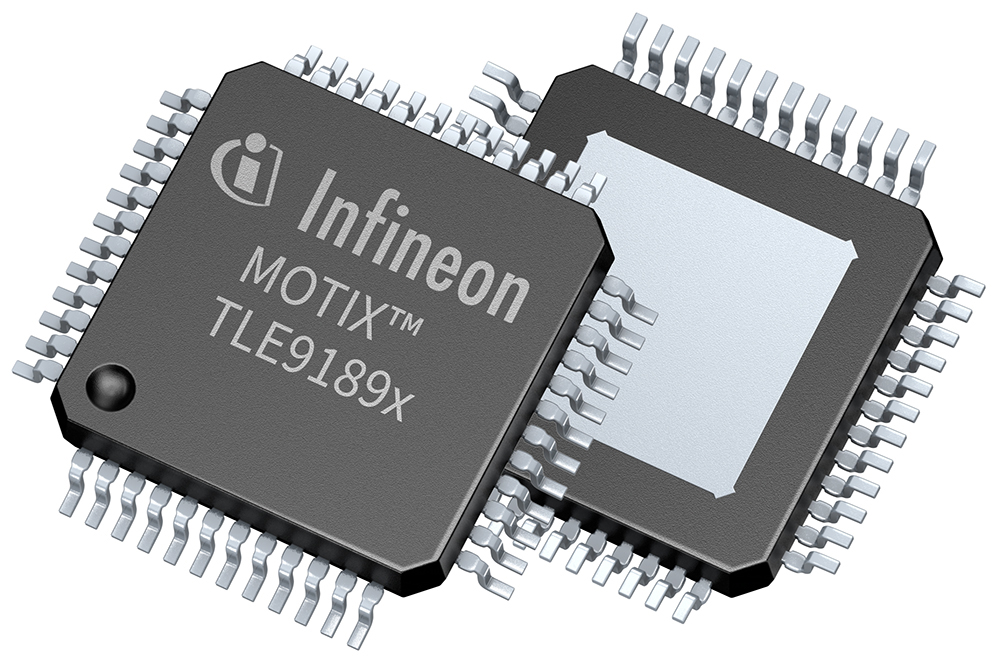

Image of Infineon Technologies MOTIX™ TLE9189x Next-Generation 3-Phase Gate DriverThe Infineon Technologies MOTIX TLE9189x gate driver ICs feature a conventional motor control concept via PWM input and three integrated current sense amplifiers for accurate current measurement with a precise configurable reference voltage (3.3 V/5 V). The adaptive MOSFET control feature helps improve EMC performance, achieve target switching time, and reduce power losses. The supply voltage range (4.2 V to 36 V) is optimized for automotive 12 V battery systems.

Features
  • Drives six MOSFETs, QGtot = 200 nC/MOSFET
  • Supply voltage range of 4.2 V to 36 V
  • 0 to 100% duty cycle without restrictions
  • Motor control concept with PWM input
  • Robust motor connection pins (12 V to 48 V)
  • Three integrated current sense amplifiers
  • Configurable reference voltage for CSA
  • Support of self-test features
  • Passive clamping of external FETs
  • Current source-controlled output stage
  • Diverse monitoring and diagnostics
Benefits
  • Reduced external component count
  • Optimized system cost
  • Fully operational down to 4.2 V supply
  • Configurable failure reactions
  • Scalable device available in tiny VQFN 88 and TQFP-48 package
  • Extended temperature range AEC-Q100
  • ISO 26262 Functional Safety (FuSa)-compliant: ASIL D
Applications
  • Electric power steering (EPS)
  • Electric brake booster (EBB)
  • By-wire systems (e.g., steer-by-wire, brake-by-wire)
  • Safety-related applications

MOTIX™ TLE9189x Next-Generation 3-Phase Gate Driver

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
TLE9189QUWXUMA1TLE9189QUWXUMA1TLE9189QUWXUMA11821 - Immediate$7.59View Details
BLDC_MOTOR_CONTROLTLE9189QVWXUMA1BLDC_MOTOR_CONTROL2500 - Immediate$7.16View Details

Evaluations Kits

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
EVALKITTLE9189QUWTOBO1EVALKITTLE9189QUWTOBO1EVALKITTLE9189QUWTOBO12 - Immediate$1,123.47View Details
EVALKITTLE9189QVWTOBO1EVALKITTLE9189QVWTOBO1EVALKITTLE9189QVWTOBO12 - Immediate$1,123.47View Details
Published: 2025-12-10
