Fair-Rite Products Corp.

Oval Clip-IT Cores

Fair-Rite cores offer several advantages over their round counterparts, and can be used in a variety of applications

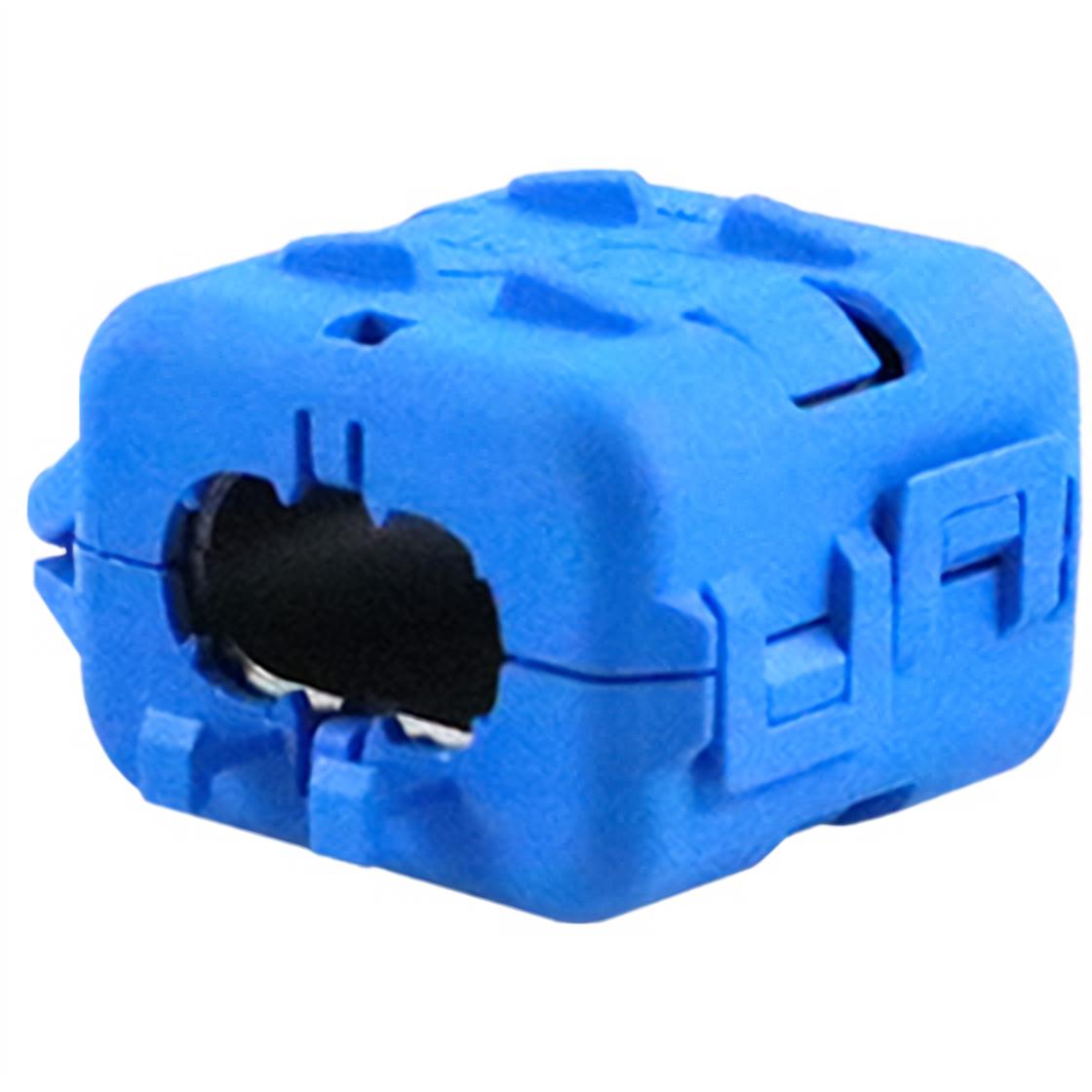

Image of Fair-Rite Oval Clip-IT CoresFair-Rite oval ferrite cores offer several advantages over their round counterparts, and can be used in a variety of applications. Oval cores are a prime geometry for common-mode chokes to suppress generated noise from motor drives, power supplies, and other applications allowing for two cables to be run side-by-side. This oval design can also be used as a filter for inductive circuits to attenuate unwanted frequencies and improve power and signal quality. Oval ferrite cores offer a combination of improved performance, flexibility, and efficiency, making oval cores a valuable choice for a wide range of electronic and electrical applications.

Features
  • Greater impedance per unit volume
  • Reduced size vs. round core
  • Automotive designed
  • Bus bar bonified
  • Enhanced coupling
  • Fasteners for the lowest profile
  • No temperature or flammability limitations
Applications
  • Multiple or multi conductor cables
  • Bus bars
  • Heavy gauge wires

Oval Clip-IT Cores

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
FERRITE CORE 33 OHM HINGED0475184751FERRITE CORE 33 OHM HINGED166 - Immediate$15.23View Details
FERRITE CORE 203 OHM HINGED0431184751FERRITE CORE 203 OHM HINGED145 - Immediate$11.21View Details
FERRITE CORE 178 OHM HINGED0444184751FERRITE CORE 178 OHM HINGED97 - Immediate$11.28View Details
FERRITE CORE 139 OHM HINGED0461184751FERRITE CORE 139 OHM HINGED226 - Immediate$11.58View Details
FERRITE CORE 33 OHM HINGED0375184751FERRITE CORE 33 OHM HINGED91 - Immediate$16.79View Details
FERRITE CORE 203 OHM HINGED0331184751FERRITE CORE 203 OHM HINGED132 - Immediate$13.66View Details
FERRITE CORE 178 OHM HINGED0344184751FERRITE CORE 178 OHM HINGED117 - Immediate$13.93View Details
FERRITE CORE 139 OHM HINGED0361184751FERRITE CORE 139 OHM HINGED102 - Immediate$14.21View Details
Published: 2024-12-04
