Chapter 1

Introduction

Overview

The ZC706 evaluation kit is based on the Zynq®-7000 XC7Z045-2FFG900C All

Programmable SoC (AP SoC). For additional information, see the Zynq-7000 All

Programmable SoC Overview datasheet (DS190) [Ref 1].

A built-in self-test (BIST) and a PCIe® Targeted Reference Design (PCIe TRD) are provided

for the ZC706 evaluation kit. The BIST provides a convenient way to test many of the board's

features on power-up and upon reconfiguration. The PCIe TRD showcases various features

and capabilities of the Zynq-7000 Z-7045 AP SoC for the embedded domain in a single

package. The tutorials and reference designs available on the ZC706 web page can be used

to further explore the capabilities of the ZC706 board and the Zynq-7000 AP SoC. For the

most up-to-date information on the tutorial content provided with the ZC706 evaluation kit,

see the ZC706 Evaluation Kit Documentation webpage.

X-Ref Target - Figure 1-1

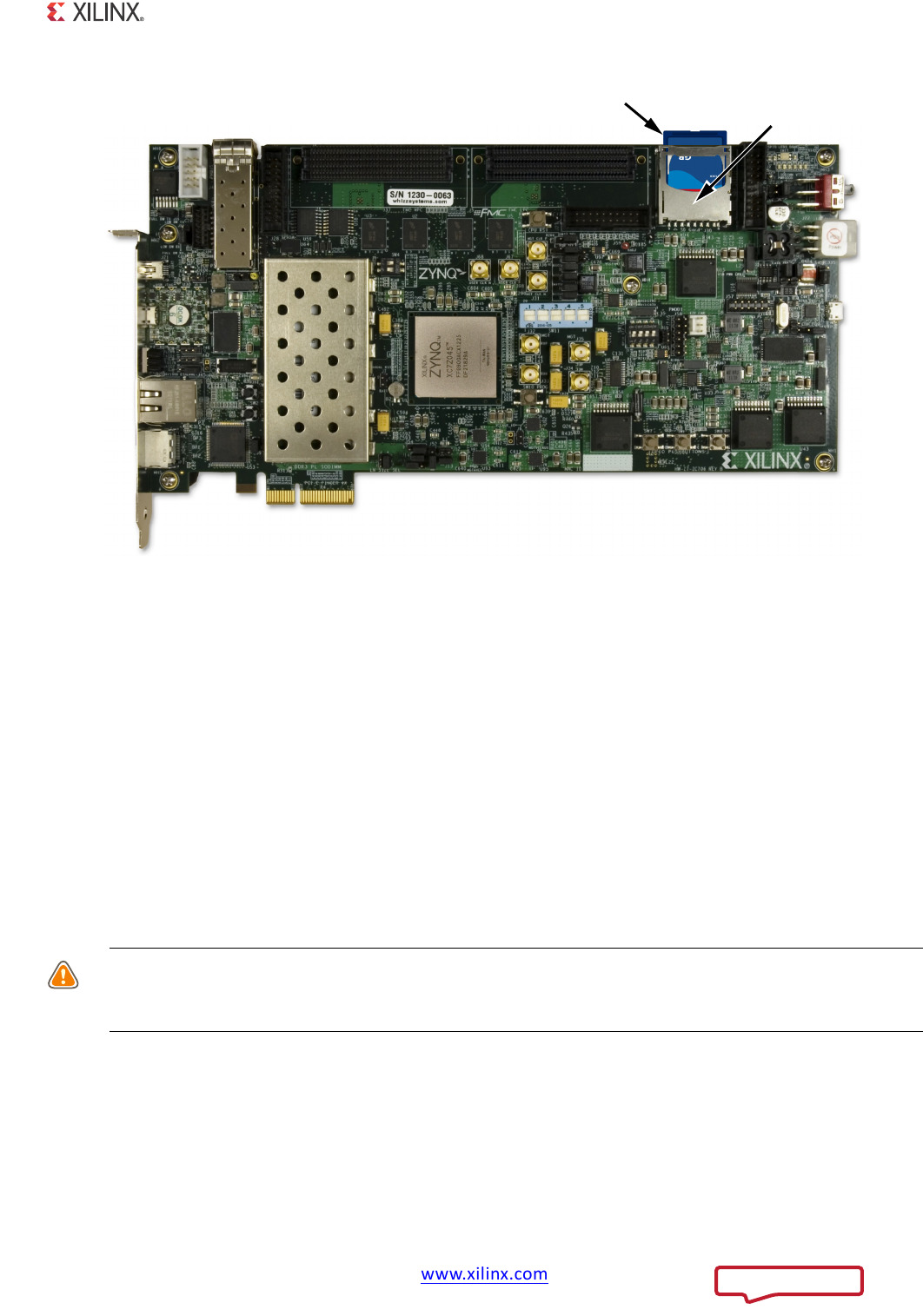

Figure 1-1: ZC706 Evaluation Kit

UG961_c1_01_121813

Send Feedback

(I XILINX‘ For reference de ZC706 Evaluation Kit Documentation www.xi|inx.com @

ZC706 Getting Started Guide www.xilinx.com 6

UG961 (v5.0) December 20, 2013

ZC706 Evaluation Kit Contents

The ZC706 evaluation kit includes the following items:

• ZC706 evaluation board (EK-Z7-ZC706-G) featuring the XC7Z045-2FFG900C AP SoC

• Full seat ISE® Design Suite: Embedded Edition

°Node-locked, Device-locked to the XC7Z045-2FFG900C AP SoC

•Board design files

°Schematics

°Board layout files

°Bill of Material (BOM)

• Documentation

°ZC706 Evaluation Kit Targeted Reference Design Documentation Advisory

• 12V AC adapter power supply

•Cables

°RJ45 Ethernet cable

°HDMI cable

°Digilent USB JTAG Cable

°USB Type-A to USB Mini-B cable

• Secure Digital (SD) multimedia card

• The Fedora 16.2 LiveDVD

• ATX adapter cable (Xilinx part number 2600304)

The evaluation kit contains all the software and reference designs, demonstrations, and

documentation needed to help the user get started quickly.

For reference design files, documents, and board source files, see the ZC706 Evaluation Kit

Documentation webpage.

For a list of key features available on the ZC706 evaluation board see the ZC706 Evaluation

Board for the Zynq-7000 XC7Z045 All Programmable SoC User Guide (UG954) [Ref 2].

Send Feedback

{I XILINXW we we we wc so Cam Cormack" Cnnnannr mm swam SFP/SFP~ Dun‘ Ouad-SFI DDR3 Mammy ARM mm; Mudu‘e Connectm Hm n 25%) us: (mama) System C‘nnk‘ 2 av was ‘\ Paws! omow usarmruAm snags w/MmrE Connecmr smn use me \mevlane , ‘ \ «Ginggrxnpm w/MmmrB Comm v . . mm sumMM ' V . > - govieranagsmem Memavyswkd . ‘ ysem E‘hsmel my sum: LEDs use 1 e um Comm“: w/chm'E Conneclov 4mm R145 enmum mop Heaaevs mime/moo Mbps mam vmna Cnnnenmv UstW 5mm Haw CMImHM PC! my“ Zynqr7000 2m 500 mm mm mx mmwm 5m um Fuxhrﬁuuons‘ Conneaor 5°C nu: swan rmx Pm Acme mg» Usev wrevennaw erx FPGA woe etx DWe-wha‘ SMA cm P/N Tmnscmvevs PushrEImnn SMA C‘ack PIN www

ZC706 Getting Started Guide www.xilinx.com 7

UG961 (v5.0) December 20, 2013

Chapter 2

ZC706 Evaluation Kit Built-In Self-Test

Introduction

The built-in self-test (BIST) tests many of the features of the ZC706 evaluation kit. BIST is

available after programming the FPGA through JTAG.

Figure 2-1 provides an overview of the board features utilized by the BIST.

Note: For a list of key features available on the ZC706 evaluation board see the ZC706

Evaluation Board for the Zynq-7000 XC7Z045 All Programmable SoC User Guide (UG954) [Ref 2].

X-Ref Target - Figure 2-1

Figure 2-1: ZC706 Board Features

UG961_c2_01_04171

PMBus Connnector

XADC Connector

Send Feedback

(I XILINX‘ TeraTerm Pro terminal program www.xi|inx.com

ZC706 Getting Started Guide www.xilinx.com 8

UG961 (v5.0) December 20, 2013

Built-In Self-Test Setup Requirements

The prerequisites for testing the design in hardware are:

• ZC706 evaluation board with the Zynq-7000 XC7Z045 FFG900-2 AP SoC part

• USB to Type-A to Mini-B cable (for UART)

• Digilent JTAG USB Type-A to Micro-B cable

• AC power adapter (12 VDC)

•TeraTerm Pro terminal program or equivalent

• USB-UART drivers from Silicon Labs

Hardware Test Board Setup

This section details the hardware setup and use of the terminal program for running the BIST

application. It contains step-by-step instructions for board bring-up.

ZC706 Evaluation Board Setup

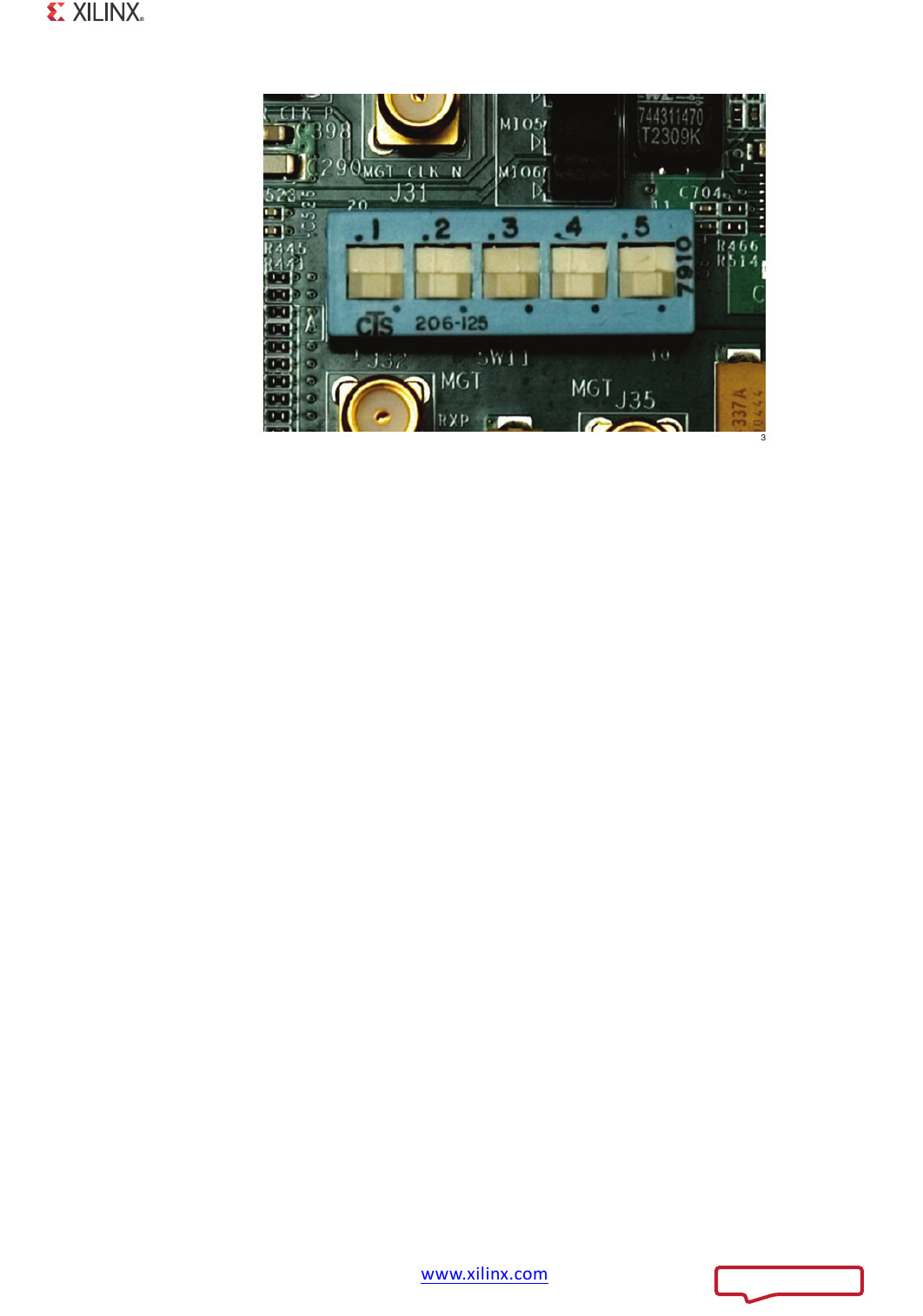

To set the ZC706 jumpers and switches, verify the switch and jumper settings are set as

listed in Figure 2-2.

IMPORTANT: To run the BIST, SW4 must be set to 01 if using the USB Type-A to Micro-B cable provided

in the kit, or to 10 if using the Platform Cable USB (II) JTAG cable.

IMPORTANT: For this application, the board should be set up as a stand-alone system, with power

coming from the cord and AC adapter that comes with the ZC706 evaluation kit.

Send Feedback

{I XILINXV www.xi|inx.com @

ZC706 Getting Started Guide www.xilinx.com 9

UG961 (v5.0) December 20, 2013

Hardware Test Board Setup

Hardware Bring-Up

This section details the steps for hardware bring-up.

1. With the board switched off, plug a USB Mini-B cable into the UART port of the ZC706

board and your control PC.

2. With the board switched off, plug the Digilent JTAG cable into the JTAG port of the

ZC706 board and your control PC.

X-Ref Target - Fi gure 2-2

Figure 2-2: Switch Settings on the ZC706 Board

UG961_c2_02_011713

Send Feedback

{I XILINXV 1: XILINX’ mmwu mm mm" mun... Lulu-”lune; lelﬂx m) Drlven m Wmdwl xv/zm: sum/Ind" y Wnkm— u m Inn-"5mm Mum In sum." Lair-shun :sz. vu: mm" In: wmm xwznn: Suwule-I‘l VS 5 WV: \nxlﬂhddlemd Wm mpySIhcm Lmvakxm CFZ‘ Ux ch Duvet: rm mm: xP/zuna SewaNx‘aﬂ veﬁomuyoucmthu Vucamue,cickNe>( www.xi|inx.com @

ZC706 Getting Started Guide www.xilinx.com 10

UG961 (v5.0) December 20, 2013

Hardware Test Board Setup

3. Install the power cable 12V stand-alone power supply (included).

4. Switch the ZC706 board power to ON.

Install the Silicon Labs Driver

1. Run the downloaded executable UART-USB driver file, listed in Built-In Self-Test Setup

Requirements, page 8. This enables UART-USB communications with a control PC (see

Figure 2-4).

X-Ref Target - Figure 2-3

Figure 2-3: ZC706 Board with the UART and Power Cables Attached

UG961_c2_03_021813

X-Ref Target - Figure 2-4

Figure 2-4: UART Cable Driver Installation

UG961_c2_04_121813

Send Feedback

{I XILINX. www.xi|inx.com S

ZC706 Getting Started Guide www.xilinx.com 11

UG961 (v5.0) December 20, 2013

Hardware Test Board Setup

2. Set the USB-UART connection to a known PORT in the Device Manager.

3. Right-click My Computer and select Properties.

4. Select the Hardware tab. Click the Device Manager button (Windows 7).

5. Click PORTS (Windows 7).

6. Find the Silicon Labs device in the list, right-click it. Select Properties.

7. Click the Port Settings tab and the Advanced… button.

8. Select an open COM port between COM1 and COM4.

Note: Steps and diagrams refer to using a Windows XP or Windows 7 control PC.

Figure 2-5 shows the steps for setting the USB-UART Port.

X-Ref Target - Fi gure 2-5

Figure 2-5: Select the Port Settings after Installing the Silicon Labs Driver

UG961_c2_05_102212

Send Feedback

(I XlLlNX‘ ZC706 Evaluation Kit Documentation File Edi Satin Cnnlvcl Wnduw HdD ﬂﬂhaud as mm w ’ um: .... llilinx Zynr7ﬂw n11 Fwyramahl: sac ~ u zczns Euluatinn Kit .9; i hws: Fawn n 1m: : mm us: He last TIMER Test SBllGlC Im Dam Test 1mm runny-y Test Interrupt 1m Hatching [inner 1m LED Test DIP WHOM Inst PL Push mm" : me FESEFXEXEFXEXEE ﬂ For more inform the default cont Documentation www.xilinx.com 5, including how to res ZC706 Evaluation Kit

ZC706 Getting Started Guide www.xilinx.com 12

UG961 (v5.0) December 20, 2013

Run the BIST Application

Unzip the Application Folder

1. Go to the ZC706 Evaluation Kit Documentation webpage and download the latest

version of the ZC706 BIST design files.

2. Unzip the folder to the C:/ drive.

Run the BIST Application

1. Start the installed terminal program.

2. Click Setup > Serial Port... and set Baud rate to 115200, parity to none, data bits to 8,

and stop bits to 1.

3. Run the script file in C:\zc706_bist\ready_for_download\zc706_bist.bat

(see Figure 2-6).

For more information on the BIST software and additional tutorials, including how to restore

the default content of the onboard non-volatile storage, see the ZC706 Evaluation Kit

Documentation webpage.

X-Ref Target - Fi gure 2-6

Figure 2-6: The ZC706 BIST Menu

UG961_c2_06_111912

Send Feedback

(I XILINX., www.xi| inx‘com

ZC706 Getting Started Guide www.xilinx.com 13

UG961 (v5.0) December 20, 2013

Chapter 3

Getting Started with the ZC706 PCIe

Targeted Reference Design

Introduction

The Zynq®-7000 PCIe® Targeted Reference Design (TRD) expands the Zynq-7000 All

Programmable SoC ZC702 Base Targeted Reference Design User Guide (UG925) [Ref 3] by

adding PCI Express® communication with a PCIe host system at PCIe x4 Gen2 speed. In the

ZC702 Base TRD, the input of the video processing pipeline is generated by a test pattern

generator in the FPGA logic. In this design, the input of the video processing pipeline is

generated by an application on the PCIe host computer at 1080p60 resolution and

transmitted to the ZC706 board through PCIe. The data is processed by video pipeline and

passed back to the PCIe host system through PCIe. As the full 1080p60 video stream only

takes up around 4 Gb/s, an additional data generator and a checker are implemented and

connected to channel 1 of PCIe DMA, showcasing the maximum PCIe x4 Gen2 bandwidth

achieved by the hardware.

The Zynq-7000 PCIe TRD demonstrates the following components working together:

• PCIe Endpoint (x4 Gen2)

• High speed serial transceivers

• High speed multichannel DMA interfacing to PCIe Endpoint

• Zynq-7000 Processing System (PS)

• Video DMA (VDMA) and Sobel filtering

• HDMI based display controller

Send Feedback

(I XILINX. ompatible high p Northwest Logic www.xi|inx‘com S

ZC706 Getting Started Guide www.xilinx.com 14

UG961 (v5.0) December 20, 2013

Introduction

The design is a PCI Express based video processing card demonstrating these capabilities:

• PCIe based connectivity demonstration

°PCI Express block of ZC7Z045 used in x4 Gen2 configuration

• PCI Express compatible high performance low latency multichannel DMA from third

party vendor Northwest Logic.

°Performance demonstration using traffic generator and checker running on FPGA

hardware and PCIe host software containing PCIe root port

• ARM Cortex-A9 core processor processing and offload demonstration

°Zynq-7000 AP SoC as an off-load device to process video data—The TRD provides

an example with the Sobel filter in the Zynq-7000 AP SoC programmable logic (PL).

°HDMI based display controller from third party vendor

°Cortex-A9 in Zynq-7000 as a co-processor processing video data

°An example design showing independent memory management in the PCIe host

system and Cortex-A9 PS.

X-Ref Target - Figure 3-1

Figure 3-1: Zynq-7000 PCIe TRD Block Diagram

Host

Control &

Monitor

Interface

Integrated Endpoint Block for PCI Express

PCIe x4Gen2 Link

AXI-ST Basic Wrapper

Multi-channel

DMA for PCIe

Performance

Monitor

User Space

Registers

Perf

Monitor

Perf

Monitor

Zynq Processing System

HP0

HP2

GP0

AXI IC

VDMA

LogiCVC

Raw Data

Generator

Raw Data

Checker Video Out

VDMA

FIFO

Sobel Filter

32 x

150MHz

64 x

150MHz

64 x

150MHz

64 x

150MHz

64 x

250MHz

128 x

150MHz

Interface Blocks in FPGA Xilinx IP Third Party IP Custom Logic Host PC

64 x 250MHz

AXI Master

Channel-0

C2S S2C

Channel-1

S2C C2S

UG961_c3_01_102212

Send Feedback

(I XILINX. www.xi| inx‘com

ZC706 Getting Started Guide www.xilinx.com 15

UG961 (v5.0) December 20, 2013

Key Components

The PCIe TRD features the following components:

• PCI Express v2.1 compliant x4 Endpoint operating at 5 Gb/s/lane/direction

°PCIe transaction interface utilization engine

°Message signal interrupt (MSI) and legacy interrupt support

• Bus mastering scatter-gather PCIe DMA to offload the PCIe host processor

°Multichannel DMA

°AXI4 Streaming interface for data

°AXI4 interface for register space access

°DMA performance engine

°Full duplex operation

- Independent transmit and receive channels

• Multichannel VDMA with programmable VSIZE and HSIZE

°AXI4 compliant

°Optional flush on frame sync

°Optional frame advancement on error

• Multilayer display controller

°Alpha blending, transparency, and move around support

°Continuous switching mode support

• Sobel filter

°AXI4 Stream interface

°AXI4 Control interface

°Supports image size up to 1080p

• Java based GUI running on the PCIe host system

°Test control panel

°PCIe performance monitoring

• A QT based GUI running on Zynq-7000 PS

°Monitors power and die temperature

°Zynq-7000 processing system’s HP0 and HP2 performance numbers

°CPU utilization

Send Feedback

(I XILINX‘ Xilinx PetaLinuX Software Development Kit www.xi|inx.com

ZC706 Getting Started Guide www.xilinx.com 16

UG961 (v5.0) December 20, 2013

Data Flow

°Xilinx PetaLinux Software Development Kit (SDK) v2013.10

Data Flow

The TRD shows how the Zynq-7000 platform can be used as an off-load engine to the PCIe

host machine it is connected to.

Video Processing and Offload Demonstration on Channel 0 of

PCIe DMA

The user application in the PCIe host system repeatedly generates video frames of size

1920 x 1080 pixels containing 8 color bars. Software on the PCIe host system manages

channel 0 of PCIe DMA to transmit the video stream from the PCIe host over x4 Gen2 PCIe

links to the Zynq-7000 ZC706 board. PCIe DMA translates the stream of PCIe video data

packets into AXI streaming data, which is in turn connected to a video DMA (VDMA).

Software running on the Cortex-A9 processor manages the AXI VDMA and transfers the raw

video frames into the PS DDR3 memory. The Sobel filter in the PL reads the image using

another VDMA, performs edge detection on the raw image, and sends the data back to PS

DDR3. The processed data in PS DDR3 can either be transferred back to PCIe host system

using channel 0 of card-to-system (C2S) interface of PCIe DMA or be displayed on the

monitor using the LogiCVC display controller. Due to limitations of the PS DDR3 bandwidth,

the same data cannot be displayed and sent back to PCIe host system simultaneously. As in

the Base TRD, this design also demonstrates hardware based Sobel filter for video

processing.

Generator and Checker Demonstration on Channel 1 of PCIe

DMA

A generator and checker on channel 1 of PCIe DMA allow the RX and TX paths to run

independently. The hardware generator in the PL fabric generates data packets with an

incremental sequence pattern. The software checker running on the PCIe host system

verifies the incremental sequence pattern generated by the hardware generator.

Independently, the driver running on the PCIe host system generates a stream of

incremental data which is transferred through PCIe link by NWL PCIe DMA to the checker

implemented in the PL fabric.

Send Feedback

(I XILINX. www.xi| inx‘com

ZC706 Getting Started Guide www.xilinx.com 17

UG961 (v5.0) December 20, 2013

Hardware Test Setup

This section describes how to set up the ZC706 board, control computer, host computer, and

software for the Zynq™-7000 PCIe® Targeted Reference Design.

Additional Materials

User-supplied materials include:

• Monitor supporting 1080p

• Two personal computers (PCs). See Computer Requirements.

• USB mouse (for use with the ZC706 board)

Computer Requirements

Running the Zynq-7000 PCIe TRD requires two PCs.

Control PC

The TRD requires an Intel processor-based laptop or desktop PC running the Windows 7

operating system. The computer must have an SD memory card receptacle, and one USB

port to communicate with the ZC706 board.

Required Software

The software listed here must be installed on the control computer:

• ISE Design Suite: System Edition.

°Communications drivers and terminal program. See Zynq-7000 All Programmable

SoC ZC706 PCI Express Targeted Reference Design User Guide (UG963) [Ref 4] for

details.

PCIe Host System Computer

An Intel processor-based desktop PC running Fedora Core 16 Linux operating system is

required for the PCIe host system. The computer must have a PCIe v2.0 slot where the

ZC706 board is installed in the open chassis of this computer.

Send Feedback

(I XILINX‘ ZC706 Evaluation Kit Documentation www.xi|inx.com @

ZC706 Getting Started Guide www.xilinx.com 18

UG961 (v5.0) December 20, 2013

Programming the ZC706 Board

Recommended Motherboards

The recommended PCI Express Gen2 PC system motherboards are:

• Sandy Bridge motherboard

• Ivy Bridge motherboard

Programming the ZC706 Board

The XC7Z045 AP SoC is configured from a bitstream in a 2 x 128 Mb Quad-SPI flash memory.

This bitstream must first be loaded in the Quad-SPI flash memory from the SD card plugged into

J30 on the ZC706 board.

Files for configuring the Zynq-7000 PCIe TRD are compiled in zc706_pcie_trd.bin

which contains the zynq_fsbl.elf bitstream and u-boot.elf bitstream along with the

Linux kernel, Linux file system image files, and Linux device tree binary files.

Extracting the Project Files

The Zynq-7000 PCIe Targeted Reference Design files are located in

rdf0287-zc706-pcie-trd-14-7.zip This file is available for download from the ZC706

Evaluation Kit Documentation webpage.

To extract the files:

1. Download rdf0287-zc706-pcie-trd-14-7.zip to a working directory on the

control computer.

2. Unzip the files contained in rdf0287-zc706-pcie-trd-14-7.zip.

Programming the SD Card

On the control computer:

1. Plug the SD card into the SD card receptacle.

2. Navigate to the rdf0287-zc706-pcie-trd-14-7/ready_to_test/prog_qspi

directory and copy the entire content to the SD card.

The BOOT.BIN file enables the PS to boot in the SD boot mode. The

zc706_pcie_trd.bin file contains the TRD bitstream. The remaining files are

required for Linux boot-up.

3. Unmount and remove the SD card from the computer and insert it into the SD card

receptacle on the ZC706 board (Figure 3-2).

Send Feedback

{I XILINXV www.xi|inx.com @

ZC706 Getting Started Guide www.xilinx.com 19

UG961 (v5.0) December 20, 2013

Programming the ZC706 Board

Programming the Quad-SPI Flash Memory

This procedure programs the Quad-SPI flash memory with files from the SD card to run the

Zynq-7000 PCIe TRD.

1. Complete the communications setup. (See Zynq-7000 All Programmable SoC ZC706 PCI

Express Targeted Reference Design User Guide (UG963) [Ref 4] for details.)

2. Power off the ZC706 board (SW12).

3. Verify the SD card is plugged into receptacle J30 as shown in Figure 3-3.

4. Connect the ZC706 board to the control computer and power supply as shown in

Figure 3-3.

CAUTION! Do NOT plug a PC ATX power supply 6-pin connector into J22 on the ZC706 Evaluation

Board. The ATX 6-pin connector has a different pinout than J22. Connecting an ATX 6-pin connector

into J22 will damage the ZC706 Evaluation Board and void the board warranty.

X-Ref Target - Figure 3-2

Figure 3-2: SD Card Location

UG961_c3_02_010813

SD Card SD Card

Receptacle J30

Send Feedback

(I XILINX‘ '1. KW ( Elﬁi! 9 coMmlsmh-n kc Tm LIE“ ﬁle [an Setup Comml mm Hdp g 2mm. asp: Cnnfiynre H001 bin (me my "norm Erasing Mark msxms (Jeﬂz) 5436k/ﬂh (many) Cnnfignre may Erasing hlncks. 55/55 (iﬂﬂz) Uriting an - 6‘?23k/ﬂk (mum) (NH: :nunny runlevel’ So'lzaz) Stnpl‘ing Huntlng dazmnn buntlngd. V/ > < \="" x="" ilinx="" 207m.="" 109i="" www="" xilin="">

ZC706 Getting Started Guide www.xilinx.com 20

UG961 (v5.0) December 20, 2013

Programming the ZC706 Board

5. Set DIP switch SW11 as shown in Figure 3-4.

6. Power ON the control computer and start TeraTerm Pro using 115200 bits/s, 8 data bits,

None parity, 1 stop bit, None flow control.

7. Power ON the ZC706 board (SW12). The init.sh script in the SD card loads the

Quad-SPI flash memory with zc706_pcie_trd.bin and the Linux kernel images.

Initialization progress is shown on the TeraTerm Pro display (Figure 3-5).

X-Ref Target - Figure 3-3

Figure 3-3: ZC706 Board Programming Setup

UG961_c3_03_121613

Power Supply

100VAC–240VAC Input

12VDC 5.0A Output

To J22

Board Power

Switch SW12

USB cable

standard-A plug

to mini-B plug

To J21

(UART)

Control

Computer SW11

SD Memory Card

X-Ref Target - Figure 3-4

Figure 3-4: SW11 SD Boot Mode Settings

UG961_c3_04_111312

SW11 12345

Pin 1

0 (Off)

1 (On)

X-Ref Target - Figure 3-5

Figure 3-5: Initialization Progress of the init.sh Script

UG961_c3_05_121813

Send Feedback

X XILINX. www.in inx‘com

ZC706 Getting Started Guide www.xilinx.com 21

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

8. Initialization is complete when the zynq> prompt appears on the TeraTerm Pro display.

9. Navigate to the rdf0287-zc706-pcie-trd-14-7/ready_to_test/sd_image

directory and copy the entire contents to the SD card.

10. Set DIP switch SW11 for Quad SPI boot mode, as shown in Figure 3-6.

TRD Demonstration Setup

This section describes hardware bring-up, software bring-up, and using the application GUI.

Installing ZC706 Board in the Host Computer Chassis

When the ZC706 board is used inside a computer chassis power is provided from the ATX

power supply peripheral connector through the ATX adapter cable shown in Figure 3-7.

To install the ZC706 board in a computer chassis:

1. Remove all six rubber feet and standoffs from the ZC706 board. Replace the PCIe metal

bracket using two of the removed screws.

2. Power down the host computer and remove the computer power cord.

3. Open the chassis, select a vacant PCIe expansion slot, and remove the expansion cover at

the back of the chassis.

4. Plug the ZC706 board into the PCIe connector at this slot.

5. Install the top mounting bracket screw into the PC expansion cover retainer bracket to

secure the ZC706 board in its slot.

X-Ref Target - Fi gure 3-6

Figure 3-6: SW11 Quad SPI Flash Memory Settings

X-Ref Target - Fi gure 3-7

Figure 3-7: ATX Power Supply Adapter Cable

UG961_c3_06_010313

SW11 12345

Pin 1

0 (Off)

1 (On)

UG961_c3_07_010713

To ATX 4-Pin Peripheral

Power Connector

To J22 on ZC706 Board

Send Feedback

{I XILINXV if}? www.xi|inx.com @

ZC706 Getting Started Guide www.xilinx.com 22

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

IMPORTANT: The ZC706 board is taller than standard PCIe cards. Ensure that the height of the card is

free of obstructions.

6. Connect the ATX power supply to the ZC706 board using the ATX power supply adapter

cable as shown in Figure 3-8.

CAUTION! Do NOT plug a PC ATX power supply 6-pin connector into J22 on the ZC706 Evaluation

Board. The ATX 6-pin connector has a different pinout than J22. Connecting an ATX 6-pin connector

into J22 will damage the ZC706 Evaluation Board and void the board warranty.

7. Connect one end of the HDMI cable to the ZC706 HDMI slot (P1) and the other end to

the HDMI monitor (Figure 3-8).

8. Slide the ZC706 board power switch SW12 to the ON position.

Installing Device Drivers

Host Computer Bootup

The procedures listed in this section require Linux super user access on the host computer.

When using the Fedora 16 LiveDVD, super user access is granted by default. If not using the

Fedora 16 LiveDVD, contact your system administrator for super user access.

If Fedora 16 is installed on the host computer hard disk, boot as a root-privileged user.

If Linux is not installed, place the Fedora 16 LiveDVD in the host computer CD-ROM drive

and restart the computer.

The Fedora 16 Live Media is for Intel-compatible PCs and contains a complete, bootable

32-bit Fedora 16 environment with the proper packages installed for the TRD

demonstration. The PC boots from the CD-ROM drive and logs into a liveuser account that

has the kernel development root privileges required to install and remove device driver

modules.

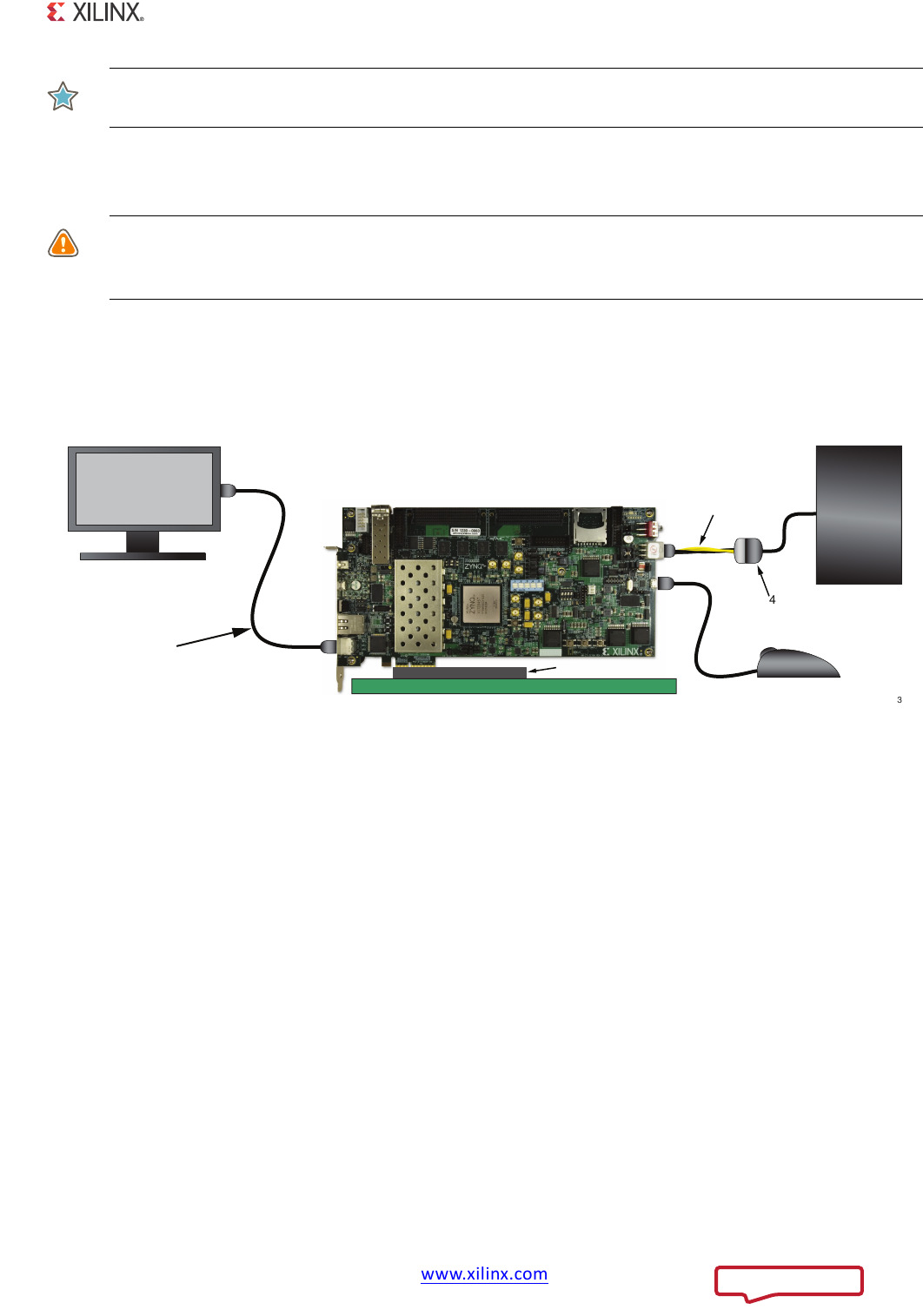

X-Ref Target - Figure 3-8

Figure 3-8: ZC706 Board TRD Setup in Host Computer

UG961_c3_08_010713

PCIe v2.0 Receptacle

HDMI cable

type-A plug

to type-A plug To P1

(HDMI)

HDMI

Monitor ATX Chassis

Power Supply

Motherboard

ATX Power Supply

Adapter Cable

Mouse

To J18

(USB)

4-Pin Peripheral

Connector From

Supply

Send Feedback

X XILINXV if}? LEDS DONE www.xi|inx.com @

ZC706 Getting Started Guide www.xilinx.com 23

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

IMPORTANT: The BIOS boot order must be set so that the CD-ROM drive is the first drive in

the boot order. To set the boot order, power on the computer and press the DEL or F2 key.

Set the boot order and save the change.

1. Switch SW12 on the ZC706 board to the ON position (as shown in Figure 3-9).

2. Power on the PCIe host system. The Zynq-7000 PCIe TRD provides PCIe status on the

GPIO LEDs near the ZC706 board power switch (Figure 3-9). The LEDs that should glow

are listed in Tabl e 3- 1 (L is the left-most LED in row 1, and LED1 is the left-most LED in

row 2.)

LED R and L should be ON and LED C should be OFF. The LEDs represent the following:

°LED R- PCIe link up

°LED C - User reset from PCIe IP

X-Ref Target - Fi gure 3-9

Figure 3-9: SW12 in the ON Position

Table 3-1: LEDS Showing PCIe Status

Row Labels

Top Row

LCRINITDONEDS10

Green

-BLINKING-

Off Green Green Green Off

Bottom Row LED1 LED2 LED3 LED4 LED5 LED6

Green Green Green Green Green Green

UG961_c3_09_011713

Send Feedback

X XILINX. "my“??? M ‘ Download ZC706 Evaluation Kit Documentation rdVO237Azc705-pzle-trd-l4-7 - Flle Browser ﬁle Edit mew ﬁn gcakmans help evi,a @Ia Y Back Up Reicaa Home Elm _ isms. an: hardware maﬂy_to_tesl snnwam quizkstan sh www.xi|inx.com @

ZC706 Getting Started Guide www.xilinx.com 24

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

°LED L: User clock heartbeat LED

The images in Figure 3-10 are seen on the monitor during boot up. On the HDMI

monitor connected to the ZC706 board, a Qt-based application appears that shows

device power and temperature.

Download rdf0287-zc706-pcie-trd-14-7.zip from the ZC706 Evaluation Kit

Documentation webpage and copy it to specific /tmp folder of PCIe host PC. Unzip the file.

Change permission by typing chmod 755 -R rdf0287-zc706-pcie-trd-14-7 on a terminal

so the files have execution permission. Double click on the copied

rdf0287-zc706-pcie-trd-14-7.

The screen capture in Figure 3-11 shows the content of the

rdf0287-zc706-pcie-trd-14-7 folder.

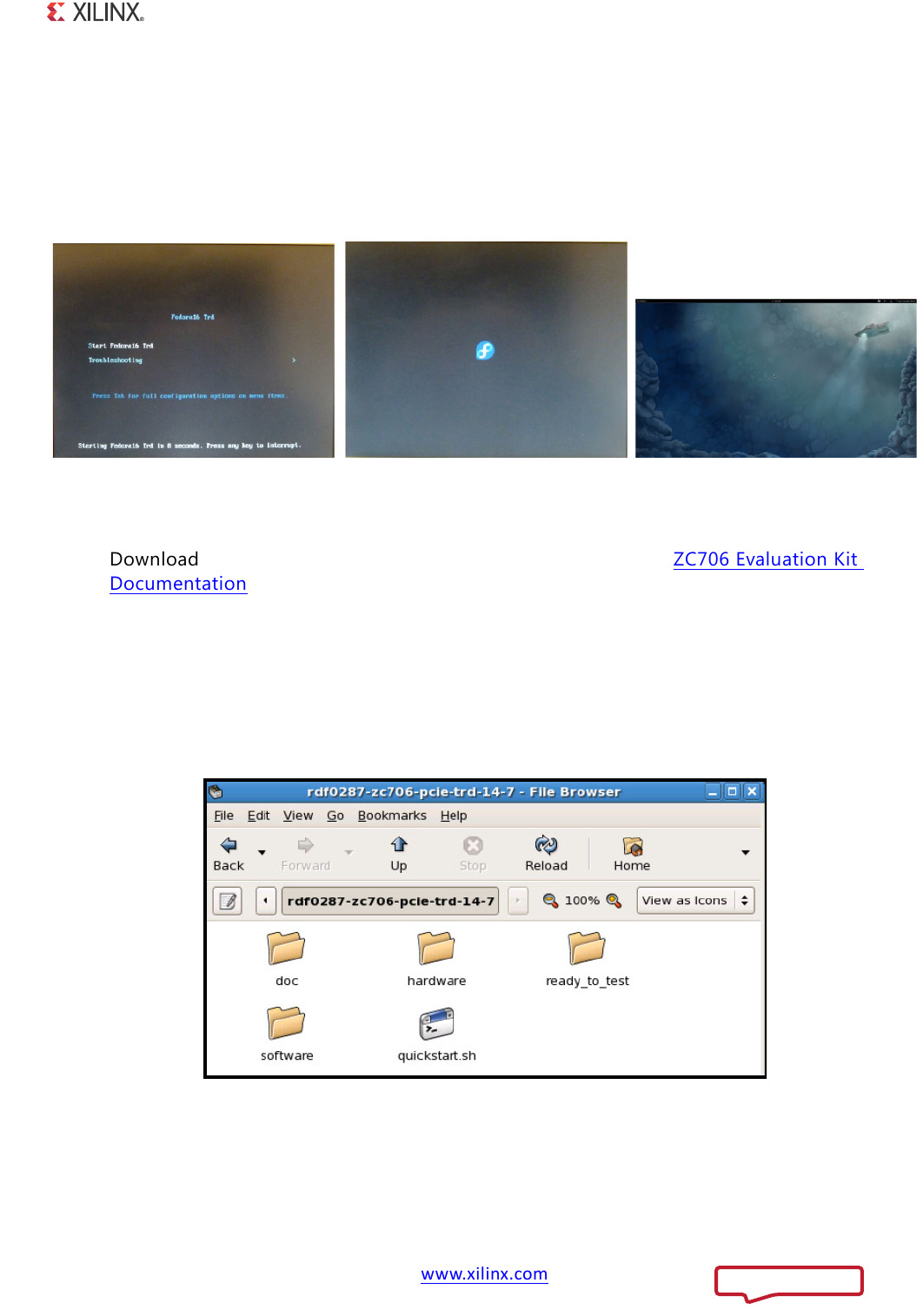

X-Ref Target - Figure 3-10

Figure 3-10: Fedora 16 LiveDVD Boot Sequence

UG961_c3_10_010813

First Screen Last Boot Screen Booted

X-Ref Target - Figure 3-11

Figure 3-11: Directory Structure of the ZC706 PCIe TRD

UG961_c3_11_121813

Send Feedback

{I XILINXV 0 ram:a1-u7os»pcle-tm-u-1 - Flle Browser QEHE 5m gait yiew go Enukmarks Ham 6 V a 94! ﬂ - Back Re‘oad Home UP @ ‘3 [Wm Q muss Q \new as Imus :‘ mac hardwave ready_to_test snflware uclmm n Do you want to run "qulckstartsh". or display its contents? 'qul(kstan sn' IS an executable textﬁle [>Ruf11m1erfr‘unalj ‘ msplay I ‘ xgancex \ ‘ Bun Targeted Reference Design Setup ZYNQ? Zynq—7000 All Programmable SOC PCIe Targeted Reference Design Dewe mmmumanen mmmuer >

ZC706 Getting Started Guide www.xilinx.com 25

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

3. Double click on the quickstart.sh script. This script sets proper permission and

invokes the driver installation GUI. Click Run in Terminal shown in Figure 3-12.

4. The GUI with driver installation option pops up as shown in Figure 3-13. This step installs

all the software necessary for the host system to control, generate, and receive PCIe

traffic to and from the ZC706 board and to monitor performance. The Driver installation

GUI has two buttons to install different drivers corresponding to Performance Demo and

Video Demo. Click Performance Demo Install.

X-Ref Target - Figure 3-12

Figure 3-12: Running Quickstart Script

UG961_c3_12_121813

X-Ref Target - Figure 3-13

Figure 3-13: Install Dialog Box of Zynq-7000 PCIe TRD

UG961_c3_13_120413

Send Feedback

(I XILINX‘ Yhmughnut (Email a an DMAmM mum) maaaanaa am waa “moms! Snswoas aa Emu; aa Shun Enurs Favamuus mmmzsmy Yhmughnut (Email a aaa DMAmM mum) maaaanaa am waa “moms! Innunnmﬂm aa Emu; u an Shun Enurs n swam aaaa u... maramam [nsxsmul m m.- mm Retewektlsl a nun maaaaaan -— ”(was a nun maaaaaan mnnuunuuﬂ a a zaaa um spud W mam mummy mm a am. a m Mu: "'01ng mm: zywwoo Au Pragrimmable Sac FC‘e Wu (mm & Mummrmg Imefaze w 5 maps m mm mun-e m’moz 512 www xilinx mm W: Van-d may Nun 7mm may Camp‘mun Heudev mm am man man a. mama" an. Triusm| (5m Perfvrmium meme (c151 Permmmnce um. mluv-l 3))o)-U xnopm

ZC706 Getting Started Guide www.xilinx.com 26

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

5. After installing the performance mode driver, the control and monitor user interface

pops up as shown in Figure 3-14. The control pane shows control parameters such as

Sobel Filter and Video Out selection modes.

6. Click the Start button in the Video Path panel to start the PCIe host system generating

a 1080p60 video stream and sending it over to the ZC706 board through PCIe. The video

stream is processed and displayed on the HDMI monitor or sent back to the host

through PCIe, based on the test mode selected in the Video Out menu. The Performance

Plots tab shows the system-to-card (S2C) and card-to-system (C2S) PCIe performance

numbers.

You can select various test modes from the Sobel Filter drop-down menu:

°Select option None to display the frames on the monitor without Sobel.

°Select option Sobel-HW to display the frames on the monitor with HW Sobel.

°Select option Sobel-SW to display the frames on the monitor with SW Sobel.

You can select various test modes from the Video Out drop-down menu:

°Select option HDMI to display Sobel data on HDMI monitor.

°Select option PCIe Host to send data back to the PCIe host system.

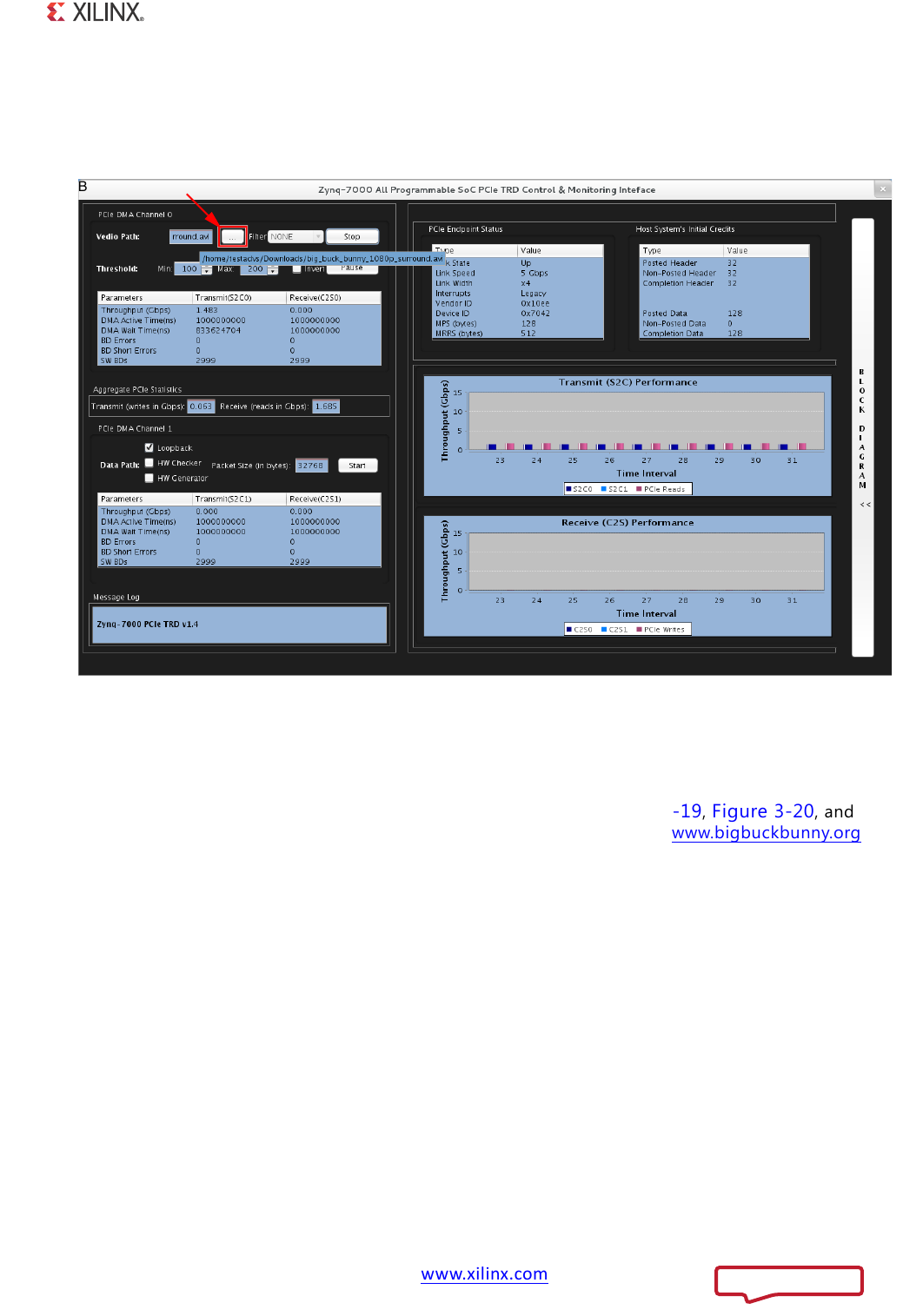

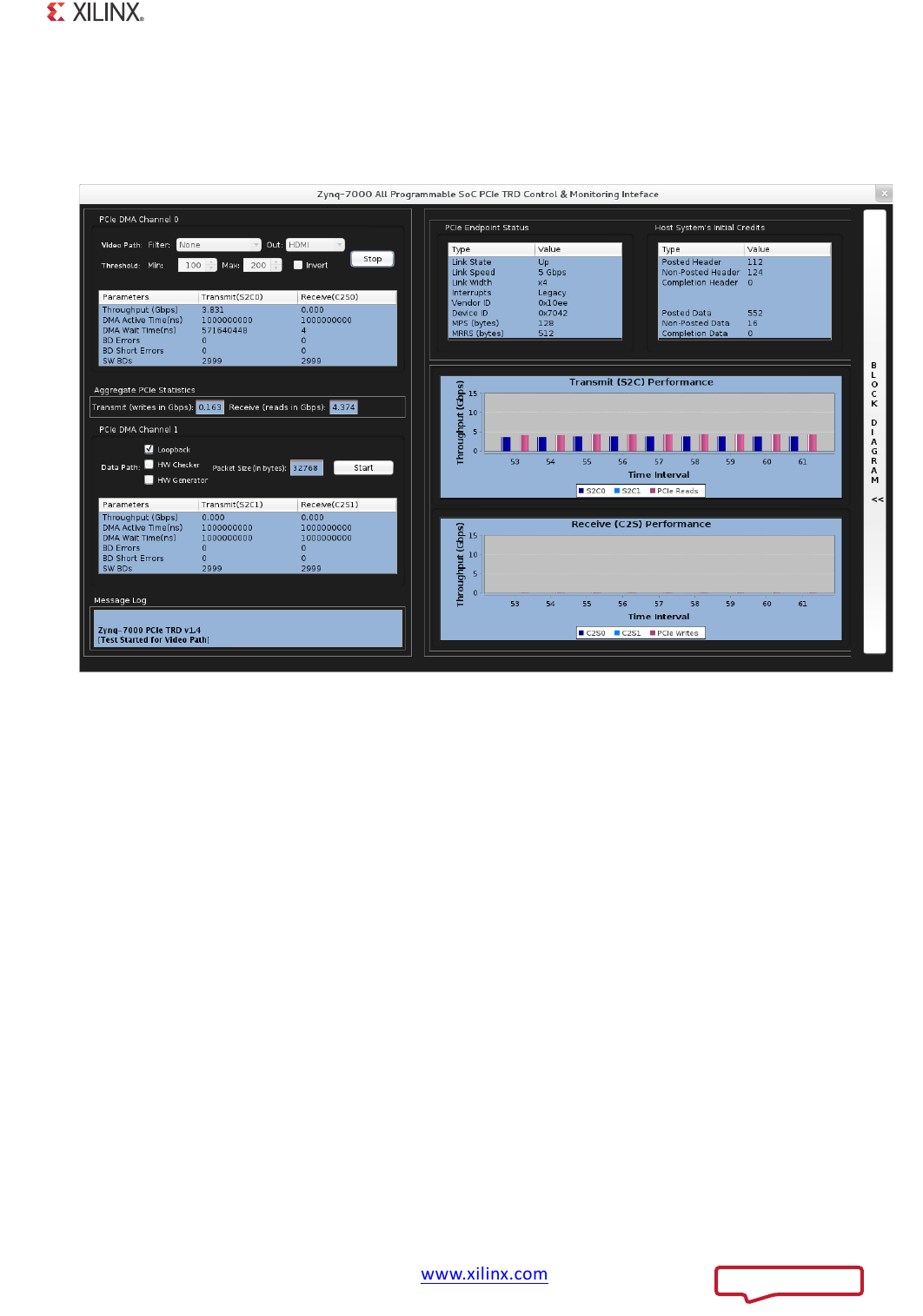

X-Ref Target - Figure 3-14

Figure 3-14: Performance Mode GUI

UG961_c3_14_120413

Send Feedback

(I XILINX‘

ZC706 Getting Started Guide www.xilinx.com 27

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

For option Sobel Filter: None and Video Out: HDMI, video data from PCIe host system

is directly sent to the display without being processed by the edge detection Sobel filter.

A color bar pattern appears on the display as shown in Figure 3-15 for this option.

7. For the options Sobel Filter: Sobel-HW and Video Out: HDMI, video data from the PCIe

host system is directly processed by the edge detection Sobel filter in the PL based on

Max and Min threshold values selection provided through the host GUI, then sent to the

display. Edges of the color bar pattern appear on the display as shown in Figure 3-16 for

this option without invert option. Optionally, the Sobel output video can be inverted by

selecting Invert check box on the GUI.

X-Ref Target - Figure 3-15

Figure 3-15: HDMI Display for Color Bar Display

UG961_c3_15_010813

X-Ref Target - Figure 3-16

Figure 3-16: HDMI Display for Sobel Output Display

UG961_c3_16_010813

Send Feedback

(I XILINXV mmmxm mmmmy zm-vaua m Pharammshle 3.: m: m: :nmm & Momlunng mm «M M,” m magma“) muemkxsx) www.in inx.com a I o c x o A n u.

ZC706 Getting Started Guide www.xilinx.com 28

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

For option Sobel Filter: Sobel-SW and Video Out: HDMI, video data from the PCIe host

system is directly processed by the edge detection Sobel filter in the PS, then sent to the

display. Edges of the color bar pattern appear on the display.

For option Video Out: PCIe Host, video data from PCIe host system is processed by

Sobel filter in the PL or PS depending on mode selected in Sobel Filter, then sent back to

the PCIe host system through PCIe. The data is not sent to the display. Sobel Filter: None

is not a supported option when Video Out is set to PCIe Host.

The Qt GUI monitors the power of the device voltage rails and die temperature. The CPU

utilization and PS HP port 0 and HP port 2 performance numbers are also periodically

plotted. When the user selects Sobel Filter: None HP port 0 performance becomes 8

Gb/s and HP port 2 port performance becomes 0 Gb/s When the user selects Sobel

Filter: Sobel-HW both HP port 0 and HP port 2 performance is close to 8 Gb/s. When

you select Sobel Filter: Sobel-SW, the CPU2 performance becomes 100%, HP port 0

performance becomes close to 8 Gb/s, and HP port 2 performance becomes 0.

8. As noted in the discussion above, because a single HD stream of video data is

insufficient to saturate available PCIe x4 Gen2 bandwidth, datapath 1 can be turned on

to add additional PCIe traffic. Click on the Start button in the Data Path-1 panel to

generate additional traffic. On this path, the user can vary packet sizes and see

performance variation accordingly. Total PCIe BW is updated in the PCIe statistics panel

and the performance plot. The user can select Loopback, HW Generator, and the HW

Checker option in the GUI for Data Path-1 (Figure 3-17).

X-Ref Target - Figure 3-17

Figure 3-17: Performance Mode Plots

UG961_c3_17_041013

Send Feedback

(I XILINX‘ zynwooo All prognmmm. Sa€ Pﬂe mm mm & Manltarmg Wm. ‘ m ml: mm. m. Up pm New unxsnua s can: Numma may W mum x. zampmmn mm may, ”mm , “mm “W V Y — m mm mm: WWW ms: 1 m a m We m mm mm m mmxwa mm moonnoonn mnmmnmo m mg m MM“ m m w.“ mm ammo» Innoovnuoo Mm mm 5 ,1 mm" M, Human n mmzm n "mun , v m H H Trmimulszclnrfumanq H‘mu m I» Lm a. .m. “mm” rhmughput {chm} Tune \muvzl 3))IB)‘: 7Na-I Varamum: nansmwsrm WM” muumm (cm n can e um) nuAKwnnmemn muwnuuwn Innuuwnnuw m m mm maunmman mnmmnnnu an Ewan n a 905mm Ennrs n 0 5101 an; 2999 2999 Razuve ((25) Parlormanz: thnuthm (chm) mum m. nu: u o -19, Figure 3-20, and www blgbuckbunny org www xilinx com

ZC706 Getting Started Guide www.xilinx.com 29

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

9. After installing the Video mode driver as described in step 4, page 25, the control and

monitor user Interface pops up as shown in Figure 3-18. The control pane shows control

parameters such as a video path browse option and sobel filter type selection.

10. To select a video file present on the host file system, click the browse file system button

( Highlighted in Figure 3-18).

Note: The video file used in this example and shown in Figure 3-19, Figure 3-20, and

Figure 3-21 is Big Buck Bunny, available for free download from www.bigbuckbunny.org.

11. Click the Start button in the Video Path panel for sending the selected video file present

in the Linux host system to the ZC706 board through the PCIe interface. The video

stream is processed and displayed on the HDMI monitor. The Performance Plots tab

shows the system-to-card (S2C) and card-to-system (C2S) PCIe performance numbers.

12. To select various test modes from the Filter drop-down menu:

°Select None to display the frames on the monitor without sobel filtering.

°Select Sobel-HW to display the frames on the monitor with hardware sobel

filtering.

°Select Sobel-SW to display the frames on the monitor with software sobel filtering.

Click the Pause button (located below the Start button) to pause the video transmission.

X-Ref Target - Figure 3-18

Figure 3-18: Video Mode GUI

UG961_c3_118_041013

Browse File System

Send Feedback

(I XILINX‘

ZC706 Getting Started Guide www.xilinx.com 30

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

The video being transmitted to the Zynq-7000 SOC is displayed on the host machine in

it's original form through a vlc player window as shown in Figure 3-19.

13. When the filter option is set to None, video data from PCIe host system is sent directly

to the display without being processed by the edge-detection sobel filter. The

transmitted video appears on the display as shown in Figure 3-20.

X-Ref Target - Figure 3-19

Figure 3-19: Video running on Host

UG961_c3_119_121613

licensed under creativecommons.org/licenses/by/3.0

X-Ref Target - Figure 3-20

Figure 3-20: Video running on HDMI Monitor with SOBEL set to None

licensed under creativecommons.org/licenses/by/3.0

UG961_c3_120_121613

Send Feedback

(I XILINX. www.xi|inx‘com S

ZC706 Getting Started Guide www.xilinx.com 31

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

14. When the filter option is set to Sobel-HW, video data from the PCIe host system is

processed directly by the edge-detection Sobel filter in the PL based on Max and Min

threshold values selected and provided through the host GUI, and then sent to the

display. Edges of the objects appear on the display as shown in Figure 3-21 when the

invert option is not selected (not checked). Checking the invert option will invert the

display.

When the filter option is set to Sobel-SW, video data from the PCIe host system is directly

processed by the edge-detection Sobel filter in the PS, then sent to the display as shown in

Figure 3-21.

15. Also, as mentioned in step 8, page 28, data path 1 (PCIe DMA Channel 1) can be turned

on in this mode to showcase the PCIe x4 Gen2 bandwidth.

X-Ref Target - Figure 3-21

Figure 3-21: Video running on HDMI Monitor with HW/SW SOBEL Filter

licensed under creativecommons.org/licenses/by/3.0

UG961_c3_120_121613

Send Feedback

(I XILINX‘ Imam m WWW; I Wm am: m pm I erx w ma pm I: (m 1mm”. WW m rm ind m, u" L‘ m I W mm L, Wm}. M: “m .1 m" D. I mm W ‘ (‘1), H

ZC706 Getting Started Guide www.xilinx.com 32

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

16. Click on the Block Diagram option to view the design block diagram as shown in

Figure 3-22.

17. Exit the Qt GUI by clicking the Exit button in the GUI as shown in Figure 3-23.

X-Ref Target - Figure 3-22

Figure 3-22: Design Block Diagram

UG961_c3_18_111312

X-Ref Target - Fi gure 3-23

Figure 3-23: Exiting the Qt GUI

UG961_c3_19_121813

Send Feedback

(I XILINX‘ www.xi|inx.com

ZC706 Getting Started Guide www.xilinx.com 33

UG961 (v5.0) December 20, 2013

TRD Demonstration Setup

18. Close the GUI. This process uninstalls the driver on the PCIe host system and opens the

landing page of the Zynq-7000 PCIe TRD. Uninstalling the driver requires the GUI to be

closed first.

Send Feedback

(I XlLlNXa For support resources Xilinx Support website valerts Xilinx Glossary Xilinx Solution Centers ZC706 Evaluation Kit ZC706 Evaluation Kit Documentation ZC706 Evaluation Kit Master Answer Record (AR 51899) D5190 ZC706 E UG954 www.xilinx.com

ZC706 Getting Started Guide www.xilinx.com 34

UG961 (v5.0) December 20, 2013

Appendix A

Additional Resources

Xilinx Resources

For support resources such as Answers, Documentation, Downloads, and Forums, see the

Xilinx Support website.

For continual updates, add the Answer Record to your myAlerts.

For definitions and terms, see the Xilinx Glossary.

Solution Centers

See the Xilinx Solution Centers for support on devices, software tools, and intellectual

property at all stages of the design cycle. Topics include design assistance, advisories, and

troubleshooting tips.

References

The most up to date information related to the ZC706 Evaluation Kit and its documentation

is available on these websites:

ZC706 Evaluation Kit

ZC706 Evaluation Kit Documentation

ZC706 Evaluation Kit Master Answer Record (AR 51899)

These Xilinx documents and sites provide supplemental material useful with this guide:

1. Zynq-7000 Extensible Processing Platform Overview (DS190)

2. ZC706 Evaluation Board for the Zynq-7000 XC7Z045 All Programmable SoC User Guide

(UG954)

Send Feedback

(I XlLlNX‘ Zynq-70 UG925 000 All UG963 P6164 P6059 P6020 P6054 UGS85 UG673 UG798 UGSZI Tools, 0 UGS73 mmable UGSZS Zyng-7000 All Programmable SoC webpage ﬁZynq-NOO All Programmable SoCs Product Table Xilinx PetaLinux Software Development Kit webpaqe Ayera Technologies PCI-SIG ARM Information Center Fedora Pro'ect Silicon Labs Northwest Logic Open Source Linux Xilinx Wiki) www.xilinx.com @

ZC706 Getting Started Guide www.xilinx.com 35

UG961 (v5.0) December 20, 2013

References

3. Zynq-7000 All Programmable SoC ZC702 Base Targeted Reference Design User Guide

(UG925)

4. Zynq-7000 All Programmable SoC ZC706 PCI Express Targeted Reference Design User

Guide (UG963)

5. LogiCORE IP Processor System Reset Module v5.0 (PG164)

6. LogiCORE IP AXI Interconnect (PG059)

7. LogiCORE IP AXI Video Direct Memory Access Product Guide (PG020)

8. 7 Series FPGAs Integrated Block for PCI Express Product Guide (PG054)

9. Zynq-7000 AP SoC Technical Reference Manual (UG585)

10. Quick Front-to-Back Overview Tutorial: PlanAhead Design Tool (UG673)

11. ISE Design Suite 14: Release Notes, Installation, and Licensing (UG798)

12. Zynq-7000 All Programmable SoC Software Developers Guide (UG821)

13. Zynq-7000 All Programmable SoC: Concepts, Tools, and Techniques (CTT) A Hands-On

Guide to Effective Embedded System Design (UG873)

14. Zynq-7000 All Programmable SoC: ZC702 Evaluation Kit and Video and Imaging Kit

Getting Started Guide (UG926)

15. Zynq-7000 All Programmable SoC webpage

16. Zynq-7000 All Programmable SoCs Product Table

17. Xilinx PetaLinux Software Development Kit webpage

These external websites provide supplemental material useful with this guide:

18. Ayera Technologies

TeraTerm Pro terminal program

19. PCI-SIG

PCI Express specifications

20. ARM Information Center

AMBA AXI4-stream protocol specification

21. Fedora Project

(Fedora operating system information and downloads)

22. Silicon Labs

Si570, Si5324C, CP2103GM, USB to UART Bridge, VCP Drivers

23. Northwest Logic

PCI Express® Solution, DMA Back End Core

24. Open Source Linux (Xilinx Wiki)

Developer resources

Send Feedback

(I XlLlNX‘ Install Xilinx Tools (Xilinx Wiki GitHub Using Git (Xilinx Wiki Device Tree Main Page Xylon LogicBRICKS QT Documentation Using Git Install Xilinx Tools www.xilinx.com

ZC706 Getting Started Guide www.xilinx.com 36

UG961 (v5.0) December 20, 2013

References

25. Install Xilinx Tools (Xilinx Wiki)

ARM GNU tools

26. GitHub

Xilinx open source ARM Git repository

27. Using Git (Xilinx Wiki)

Git installation instructions and information

28. Device Tree Main Page

Device Tree Wiki

29. Xylon LogicBRICKS

logiCVC-ML Compact Multilayer Video Controller IP core, description and data sheet

30. QT Documentation

Documentation for the QT cross-platform UI and software application development

framework

31. Using Git

A public Git tree for Xilinx open source projects

32. Install Xilinx Tools

Install Xilinx Tools is a part of Xilinx design flow

Send Feedback

(I XlLlNXi Do not throw Xilinx products marked w 2002/96/EC on waste electrical and ele collection of WEEE. Your cooperation i and the protection ofthe environment presence of hazardous substances in disposal. Further information and ins htt9:\\www.xil inx.com\ehs\weee.htm www.xilinx.com

ZC706 Getting Started Guide www.xilinx.com 37

UG961 (v5.0) December 20, 2013

Appendix B

Warranty

THIS LIMITED WARRANTY applies solely to standard hardware development boards and

standard hardware programming cables manufactured by or on behalf of Xilinx (“Development

Systems”). Subject to the limitations herein, Xilinx warrants that Development Systems, when

delivered by Xilinx or its authorized distributor, for ninety (90) days following the delivery date,

will be free from defects in material and workmanship and will substantially conform to Xilinx

publicly available specifications for such products in effect at the time of delivery. This limited

warranty excludes: (i) engineering samples or beta versions of Development Systems (which are

provided “AS IS” without warranty); (ii) design defects or errors known as “errata”;

(iii) Development Systems procured through unauthorized third parties; and (iv) Development

Systems that have been subject to misuse, mishandling, accident, alteration, neglect,

unauthorized repair or installation. Furthermore, this limited warranty shall not apply to the use

of covered products in an application or environment that is not within Xilinx specifications or

in the event of any act, error, neglect or default of Customer. For any breach by Xilinx of this

limited warranty, the exclusive remedy of Customer and the sole liability of Xilinx shall be, at the

option of Xilinx, to replace or repair the affected products, or to refund to Customer the price of

the affected products. The availability of replacement products is subject to product

discontinuation policies at Xilinx. Customer may not return product without first obtaining a

customer return material authorization (RMA) number from Xilinx.

THE WARRANTIES SET FORTH HEREIN ARE EXCLUSIVE. XILINX DISCLAIMS ALL OTHER

WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,

OR NON-INFRINGEMENT, AND ANY WARRANTY THAT MAY ARISE FROM COURSE OF DEALING,

COURSE OF PERFORMANCE, OR USAGE OF TRADE. (2008.10)

Do not throw Xilinx products marked with the “crossed out wheeled bin” in the trash. Directive

2002/96/EC on waste electrical and electronic equipment (WEEE) requires the separate

collection of WEEE. Your cooperation is essential in ensuring the proper management of WEEE

and the protection of the environment and human health from potential effects arising from the

presence of hazardous substances in WEEE. Return the marked products to Xilinx for proper

disposal. Further information and instructions for free-of-charge return available at:

http:\\www.xilinx.com\ehs\weee.htm.

Send Feedback

Products related to this Datasheet

EVAL KIT ZYNQ-7000 ZC706

EK-Z7-ZC706-G-J

EVALUATION KIT ZYNQ-7000 ZC706

EK-Z7-ZC706-G
